Storage of liquids that pose a risk to water
Spill pallets made of steel
Compliance-based safety for your hazardous substances storage
Our steel and stainless steel spill trays offer the ideal solution for the compliant storage, filling and internal transport of water-polluting and flammable liquids
Table of Contents
Table of Contents
Spill pallets made of steel
Our high-quality spill pallets made of steel offer reliable protection and safety for your company.

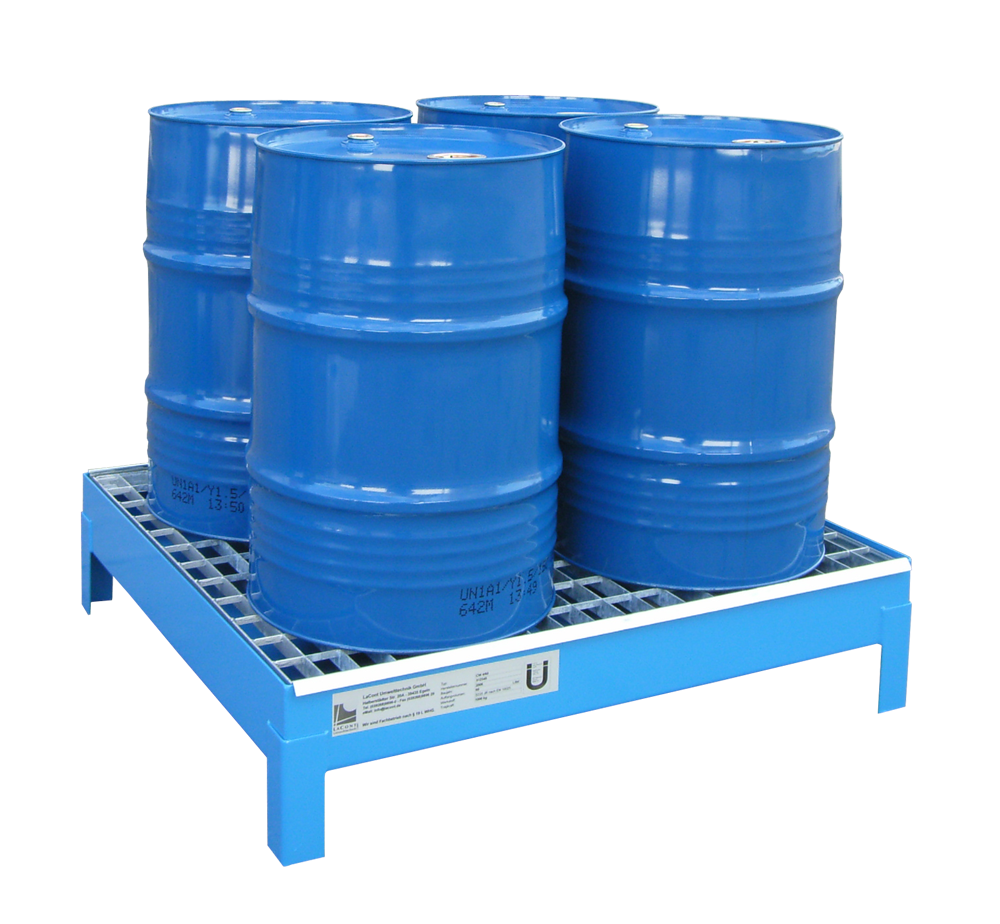

60-litre spill trays
For the storage of water-polluting and flammable liquids in containers and drums of up to 60 litres
- Drip tray made from 3 mm galvanised sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- Removable, hot-dip galvanised grating
- Ground clearance of 100 mm for internal transport
- Corrosion protection through priming and painting or through galvanised sheet steel
- PE tray inserts are available for all types for the storage of acids and alkalis

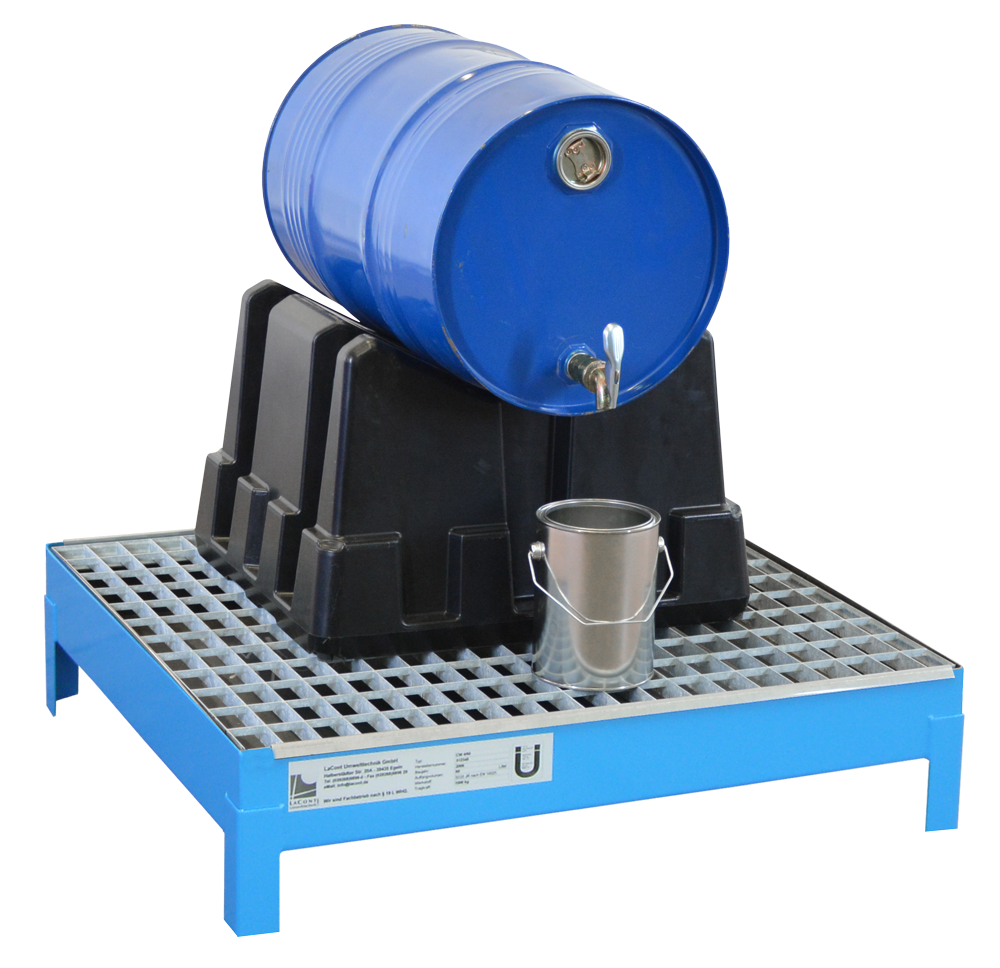

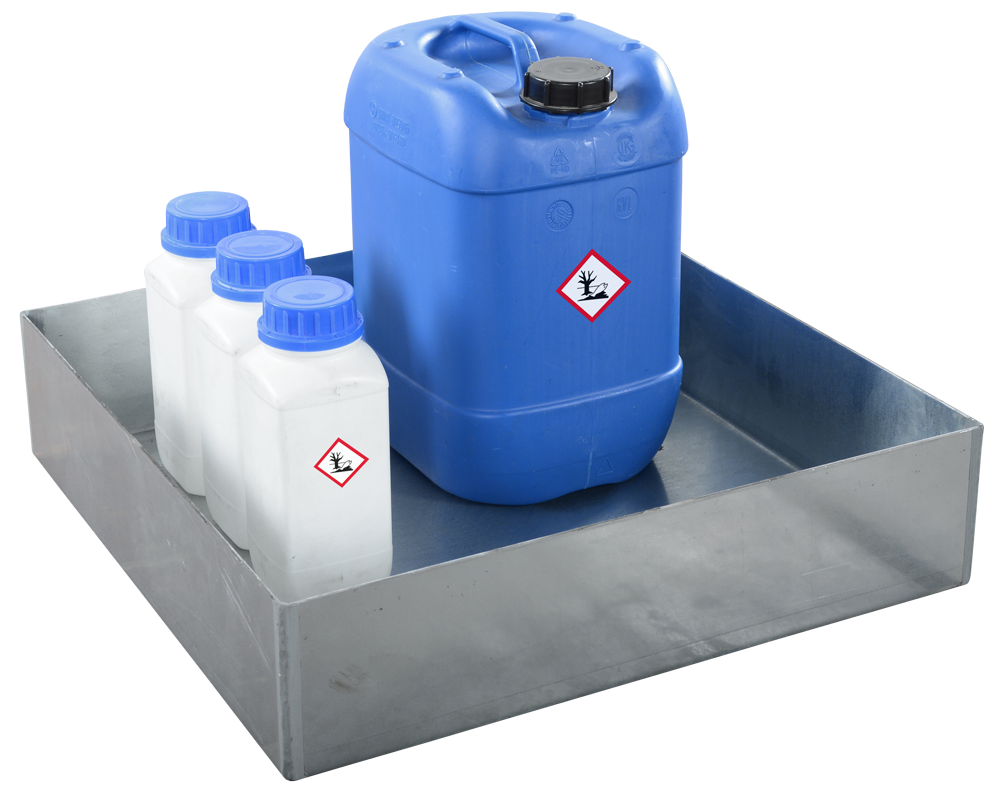

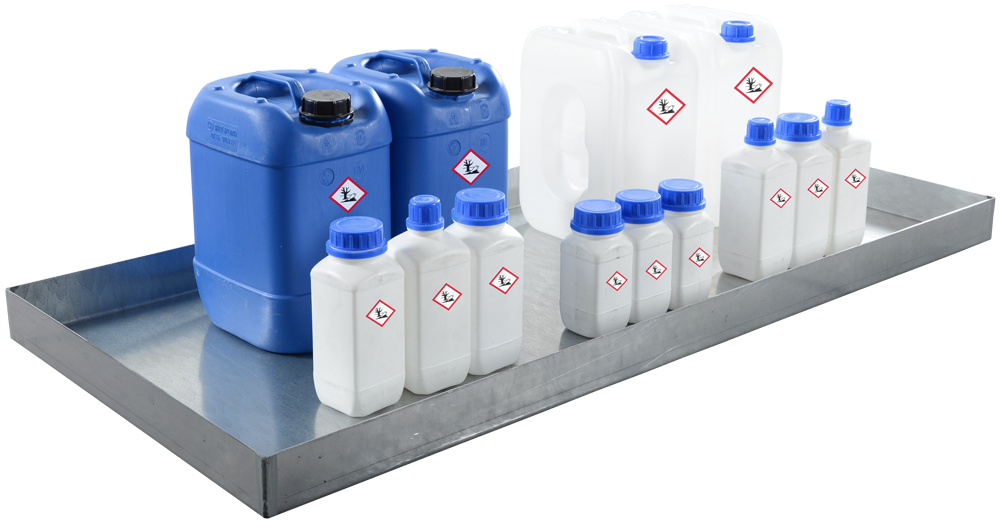

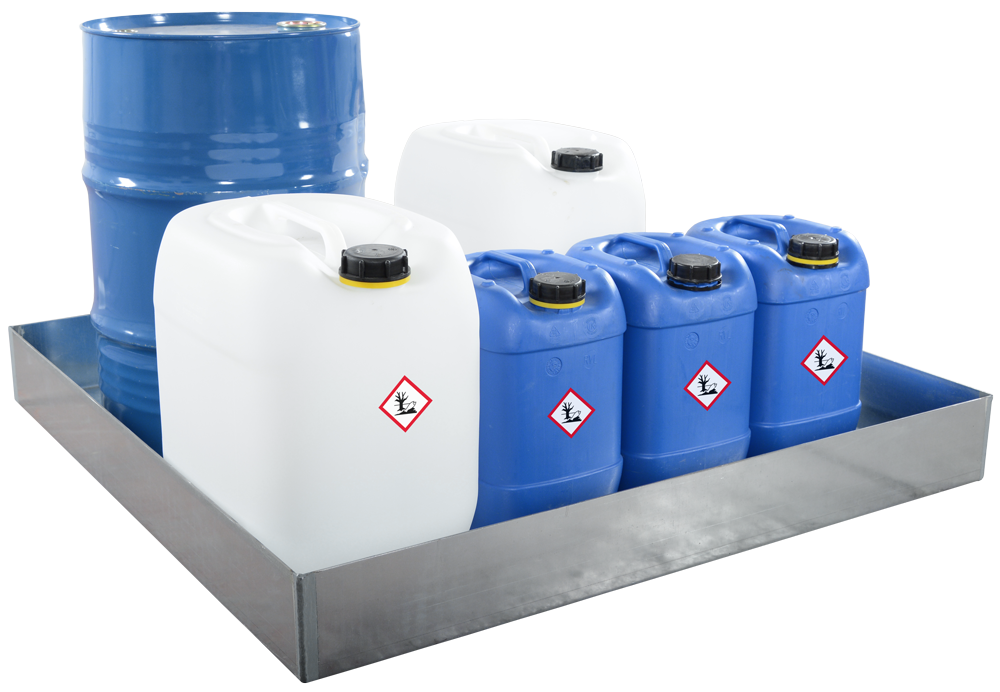

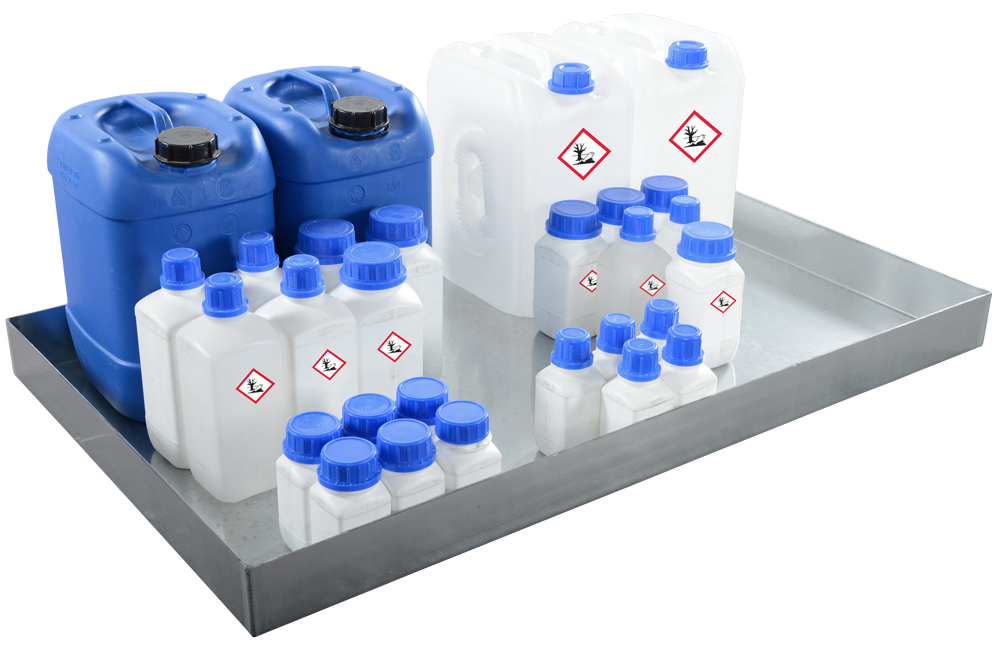

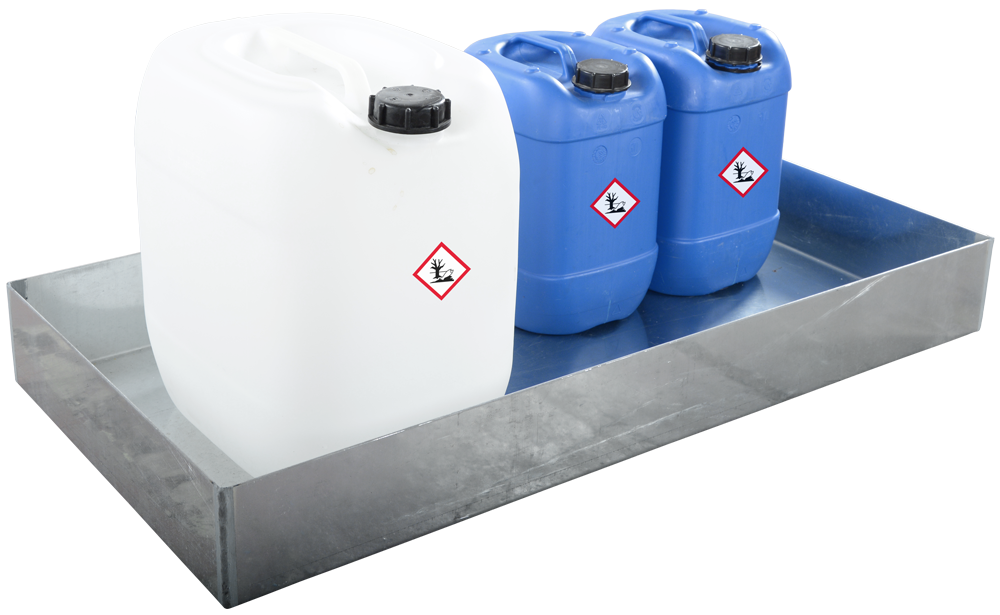

Small containers – spill trays
For the storage of water-polluting and flammable liquids in small containers
- Drip tray made from 3 mm sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- Place flat on the floor
- PE tray inserts are available for all types for the storage of acids and alkalis

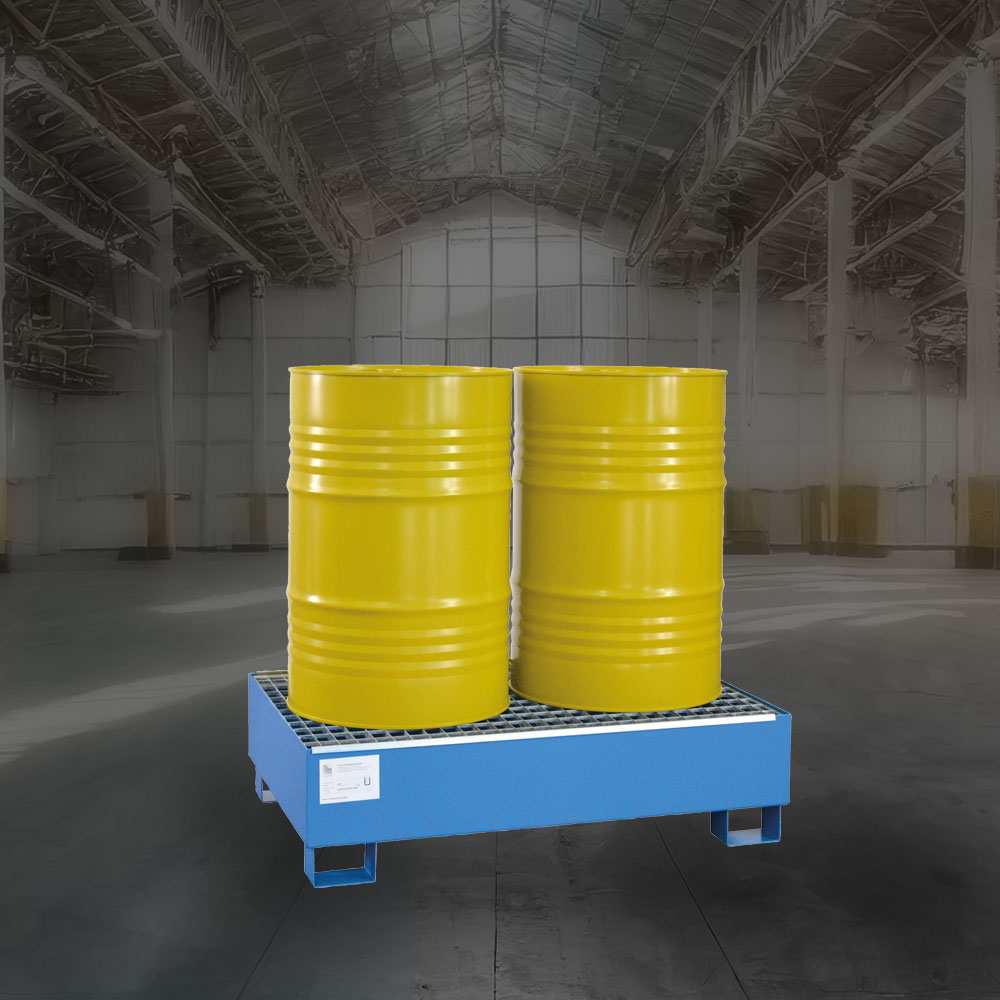

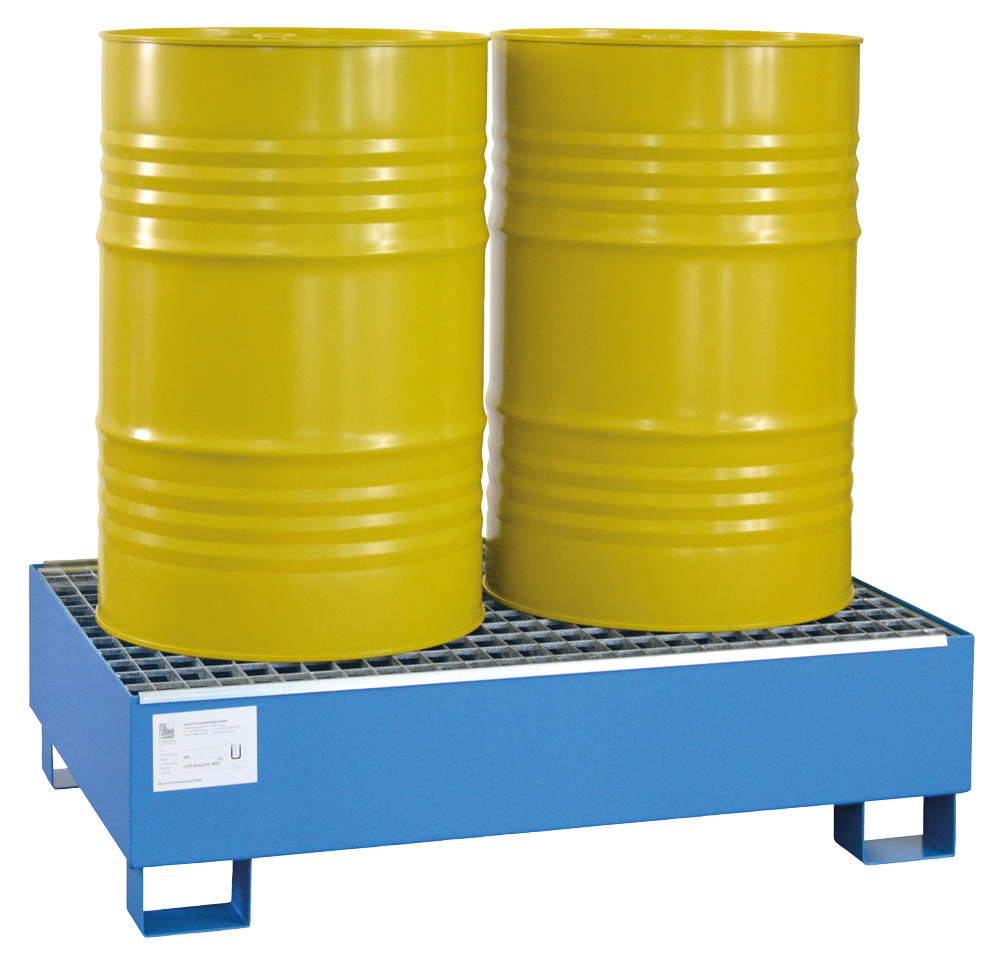

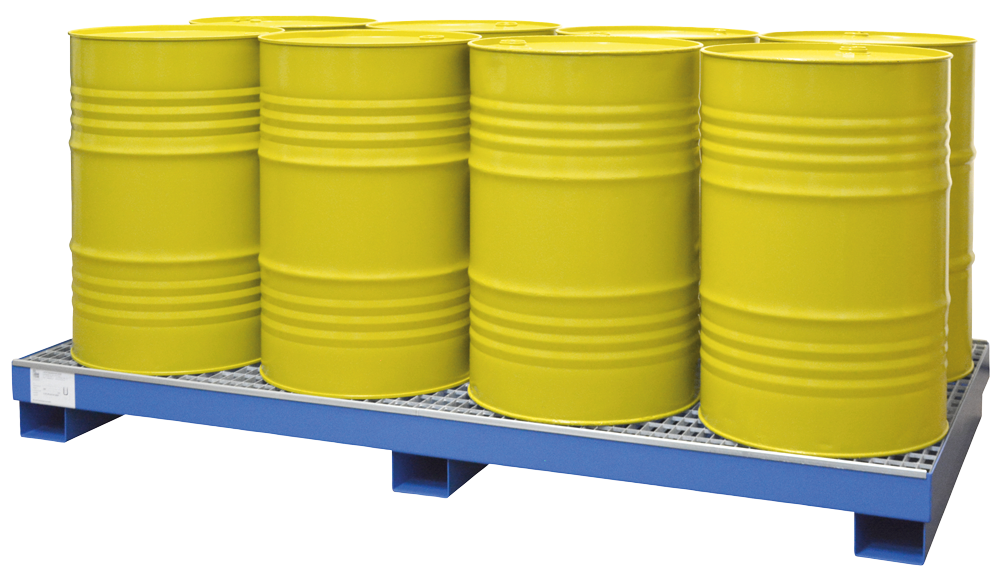

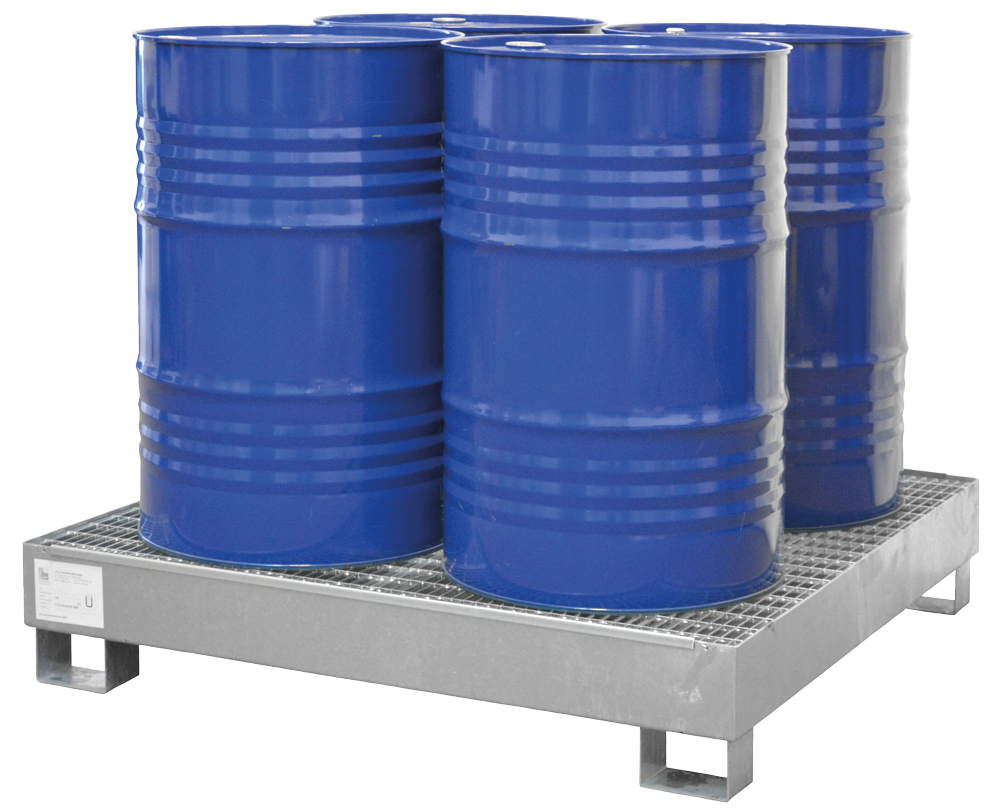

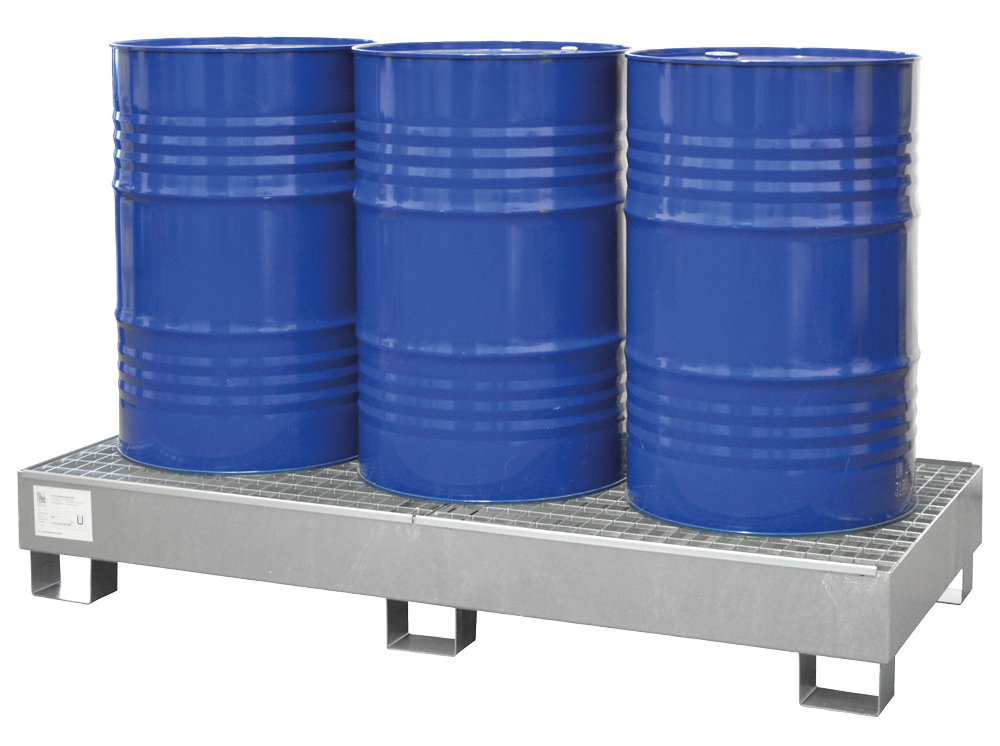

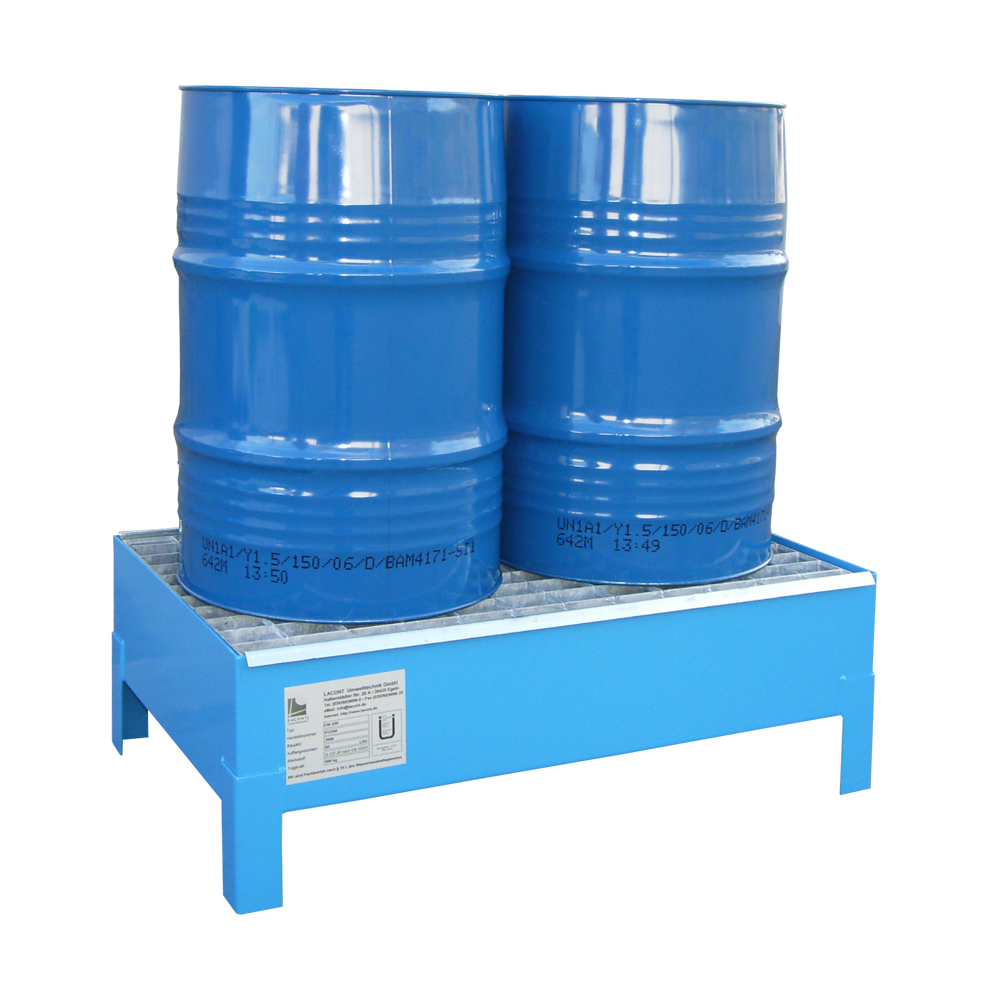

Compact trays for 200-litre drums
For the storage of water-polluting and flammable liquids
- Drip tray made from 3 mm sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- Removable, hot-dip galvanised grating
- 100 mm ground clearance for forklift transport
- Corrosion protection through priming and painting, or Hot-dip galvanising
- PE tray inserts are available for all types for the storage of acids and alkalis

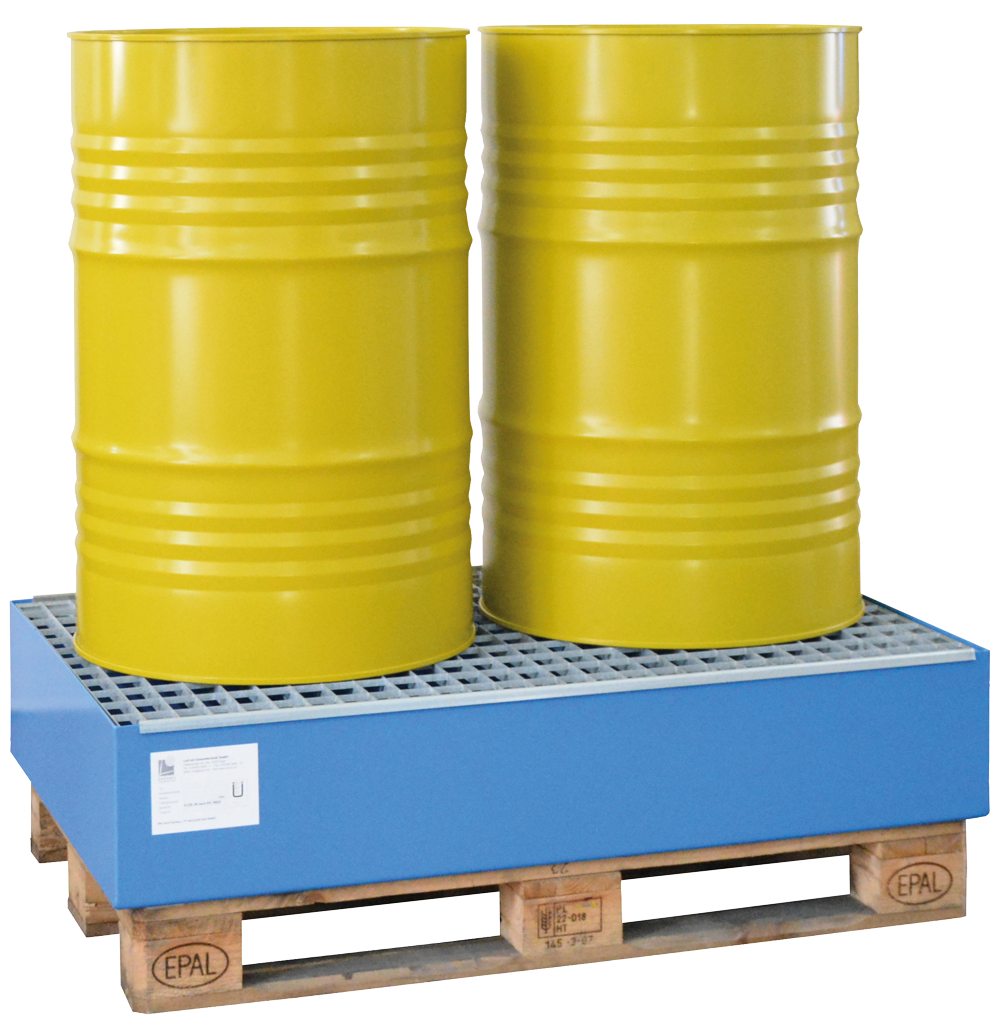

Pallet trays
- Drip tray made from 3 mm sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- For use on Euro pallets or chemical pallets
- When used in combination with a barrel stand, it is also suitable for horizontal storage
- Available with or without a grating top

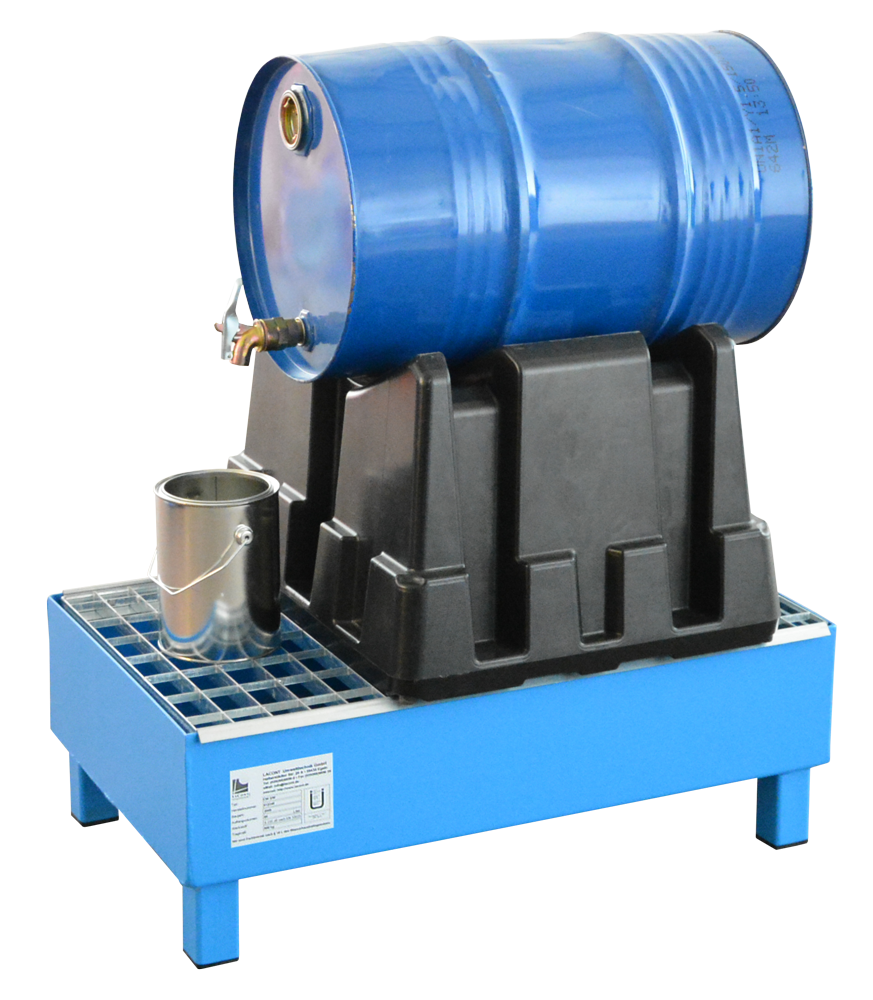

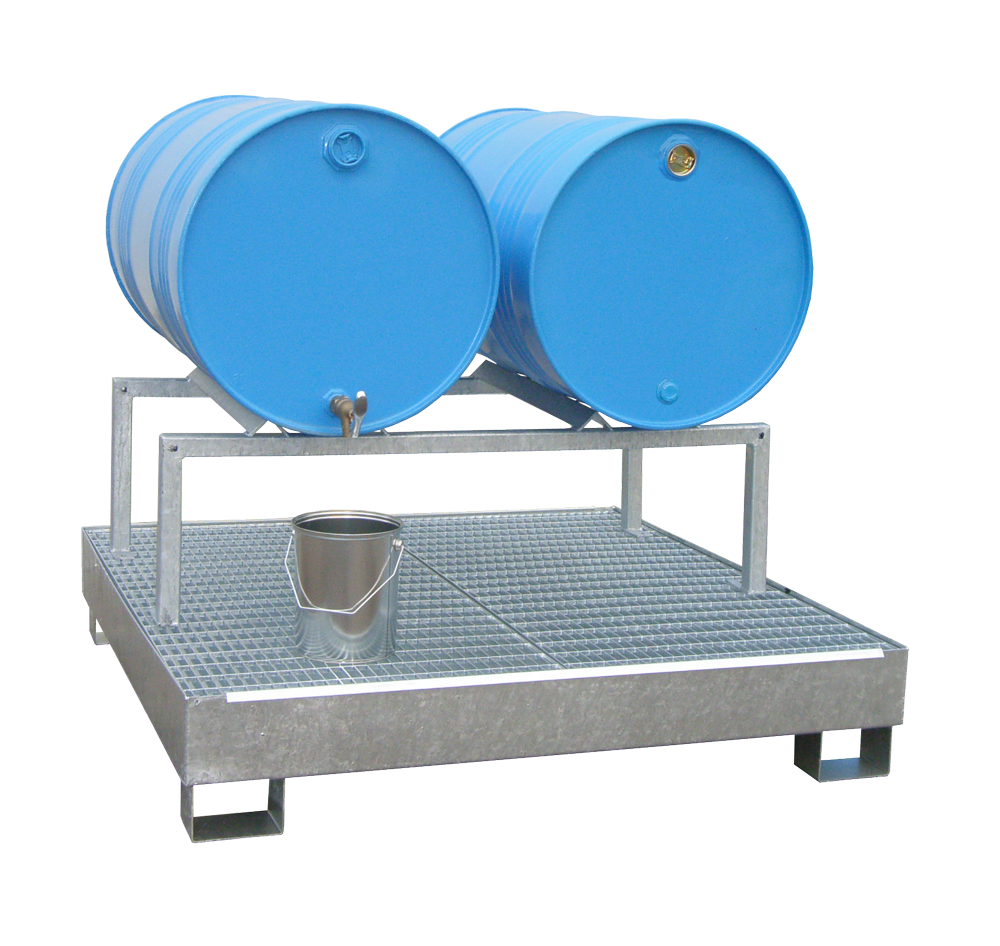

Barrel stands
Barrel stands with fixed barrel supports for 60 to 200-litre barrels, complete hot-dip galvanised. Drum support tilted forwards for easier emptying of drums. Drum stands can be combined with:
- Compact sump pallets
- Water protection pallets
- Stations for hazardous substances
- Safety floor panels
- Barrel trolley

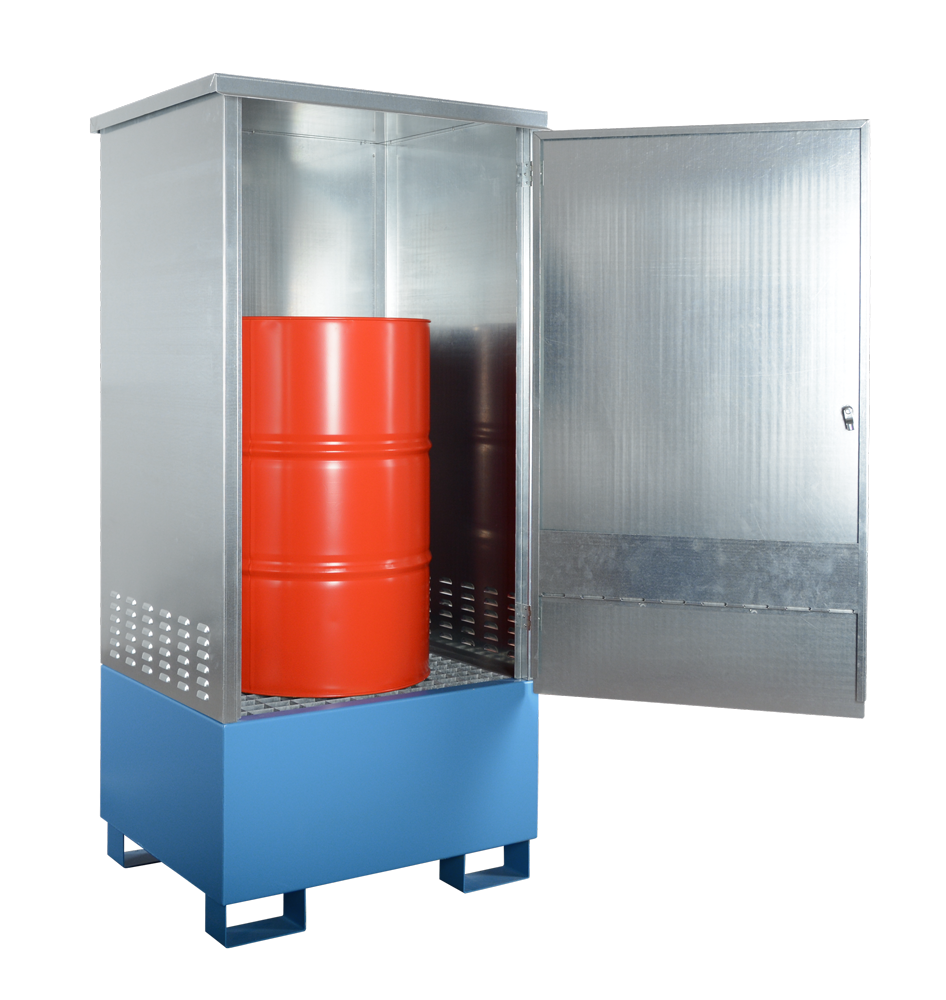

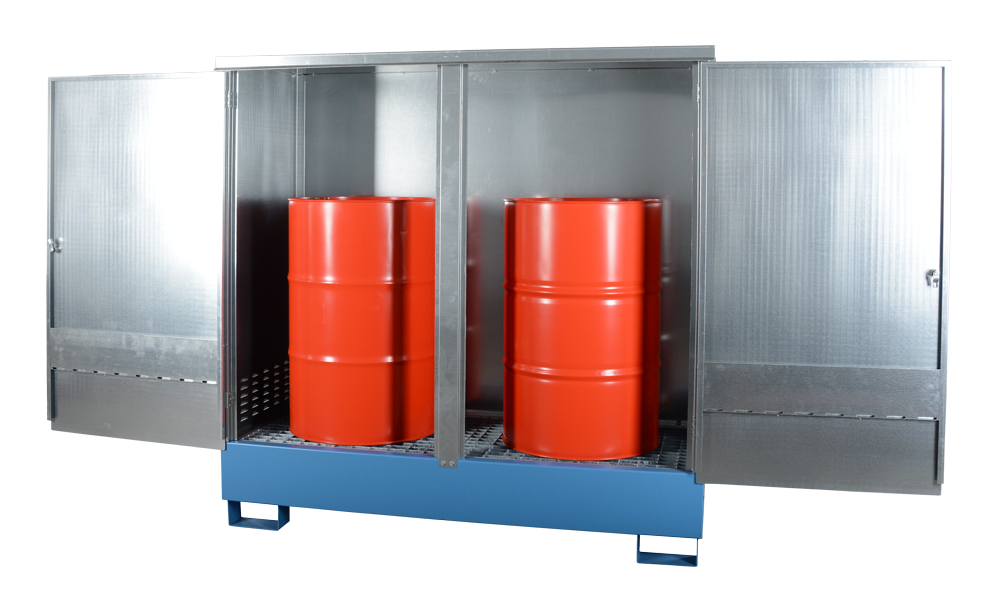

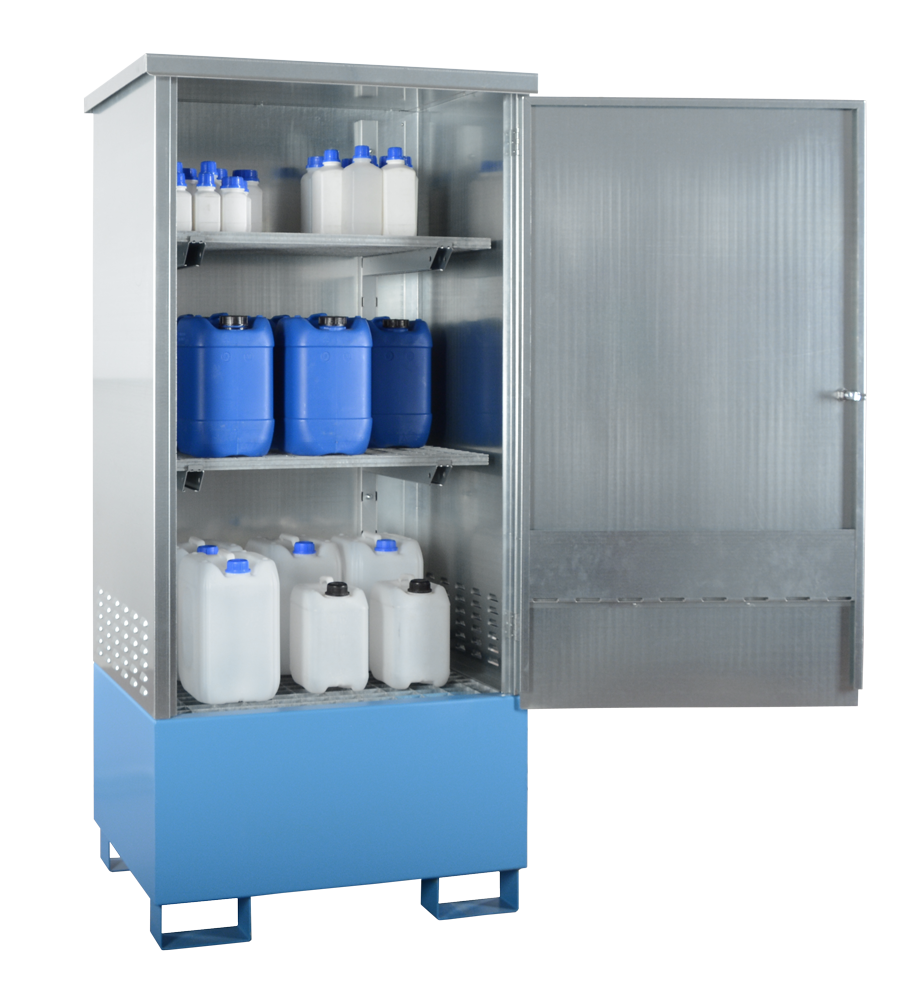

Steel drum cabinets
For the storage of water-polluting and flammable liquids
- Drip tray made from 3 mm sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- 100 mm ground clearance for forklift transport
- Lockable versions, making them suitable for outdoor storage
- Capacity: 220 litres
- Corrosion protection through priming and painting of the spill tray
- Weatherproof enclosure made of galvanised sheet steel, with ventilation openings in the side walls, for the passive storage of flammable liquids
- Document storage in the door pocket as standard

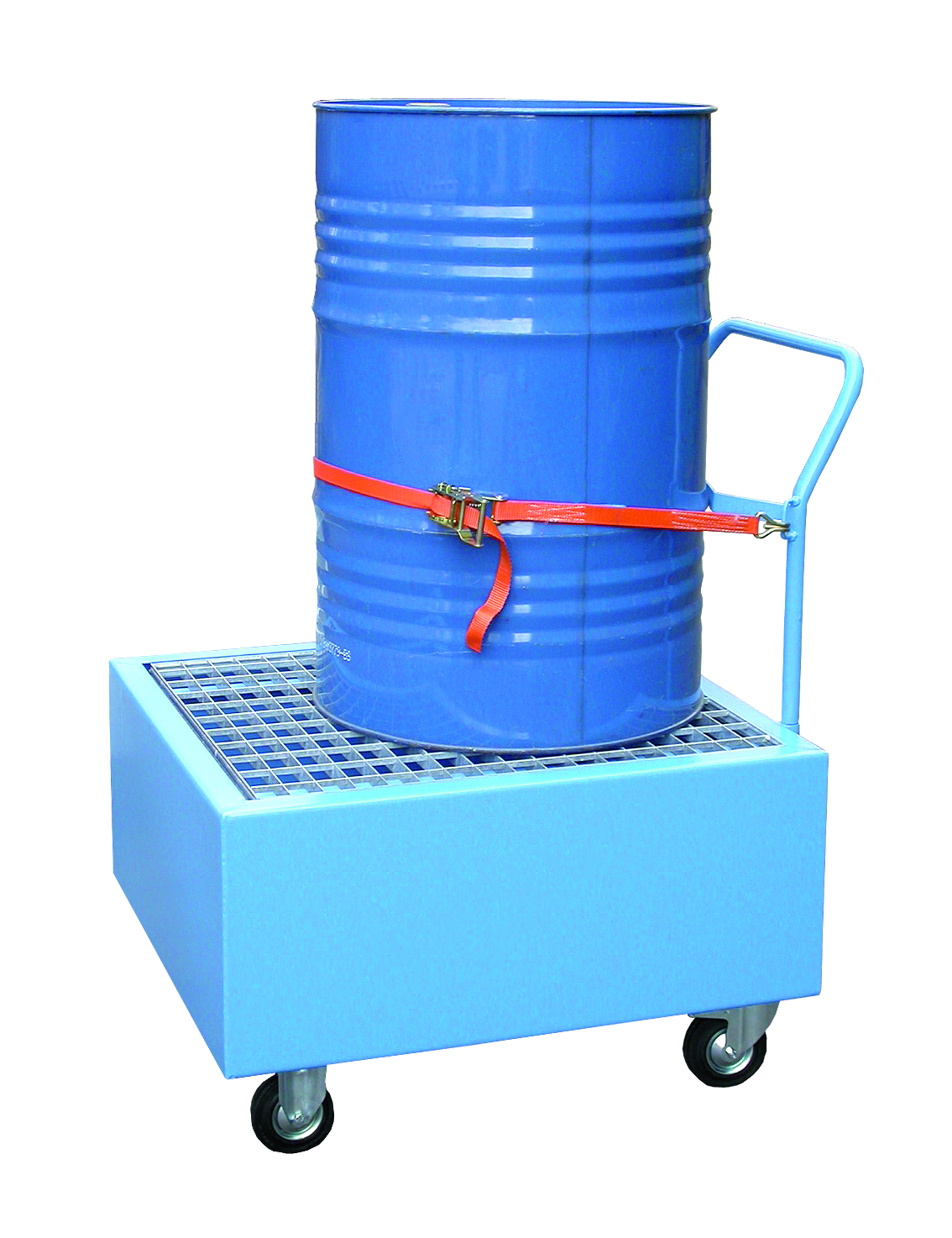

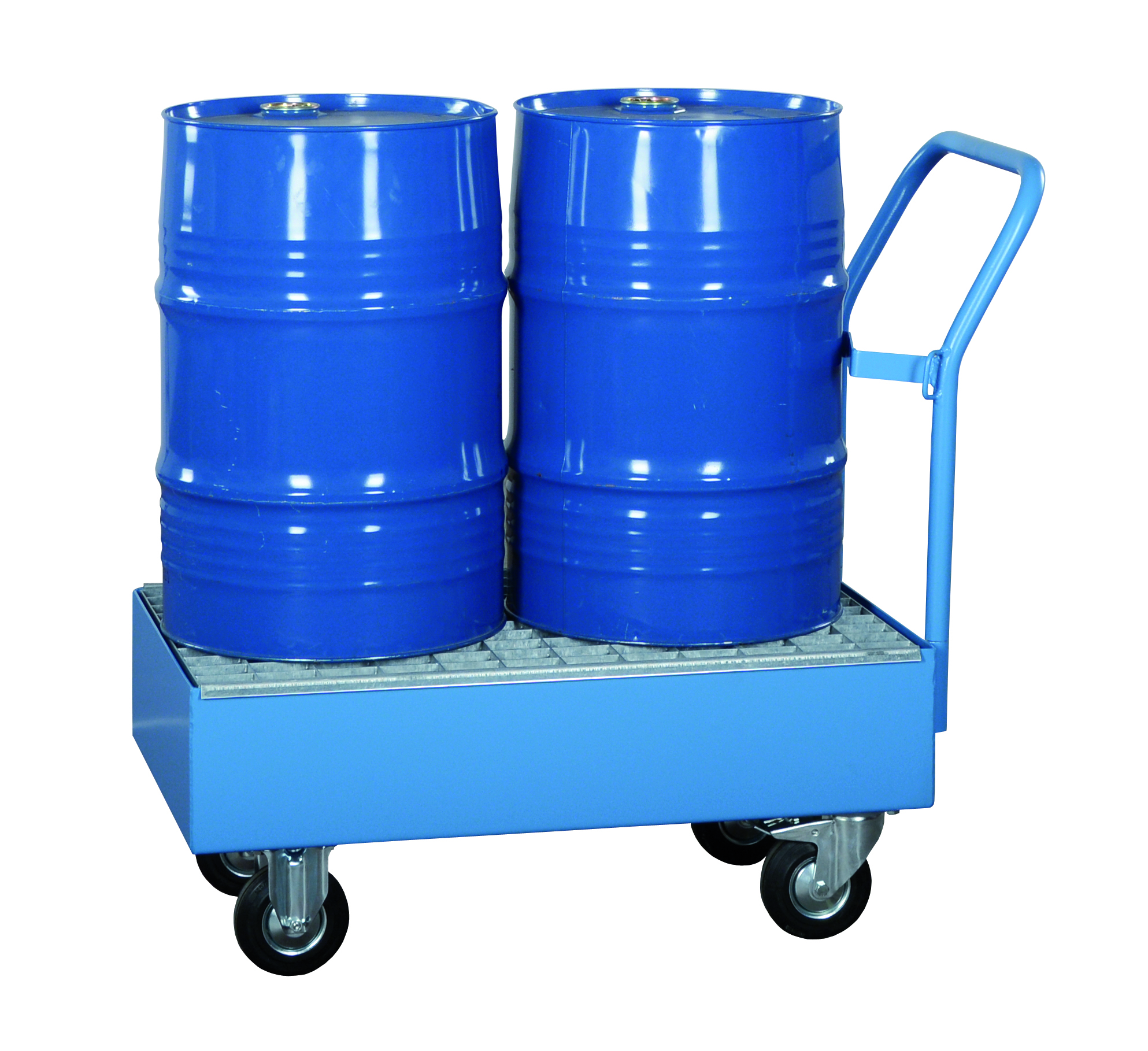

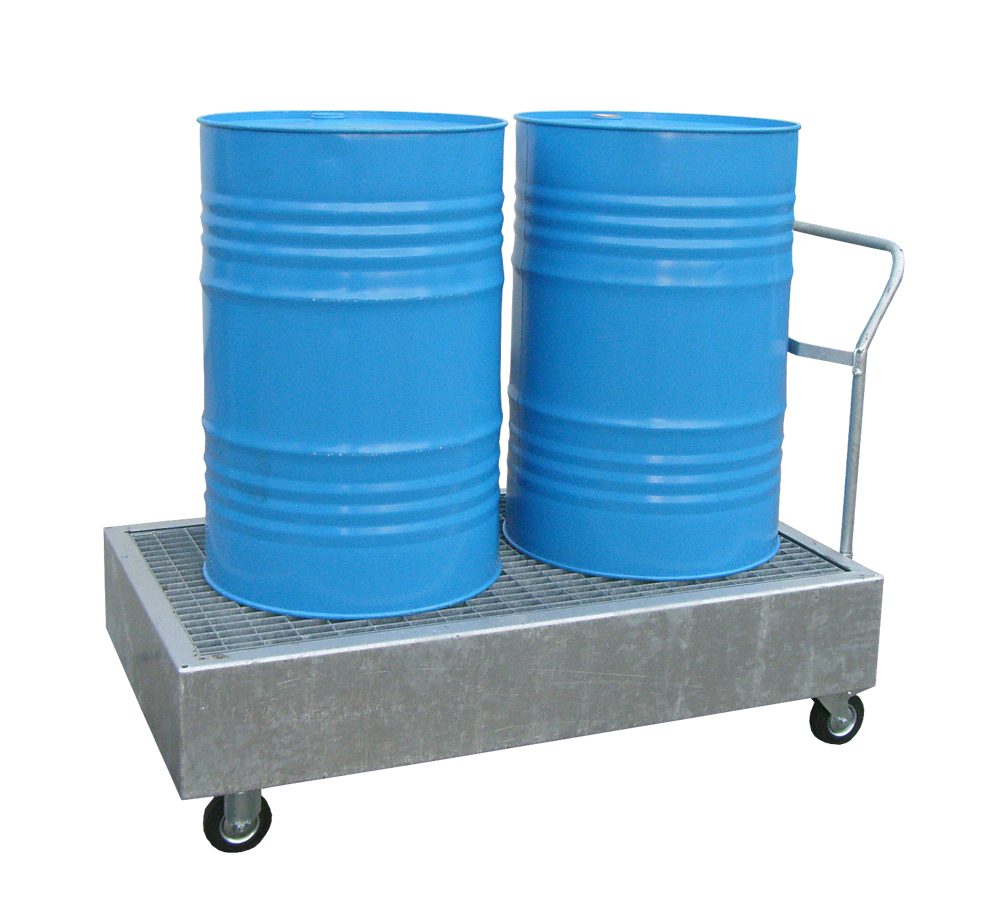

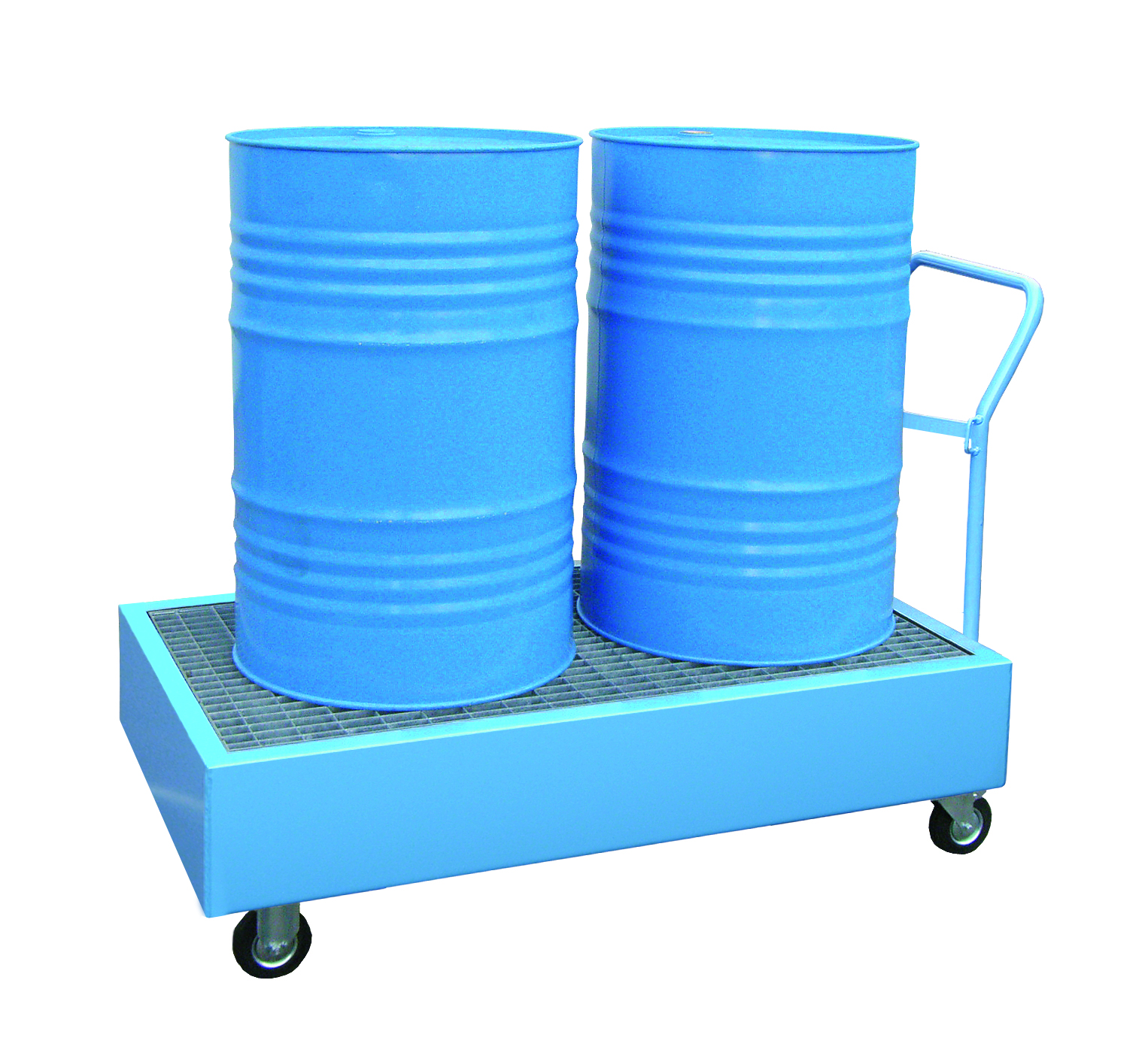

Drum trolley for 60- and 200-litre drums
For the storage and transport of substances that pose a risk to water and
flammable liquids
- Drip tray made from 3 mm sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- Removable, hot-dip galvanised grating
- Corrosion protection through priming and painting, or Hot-dip galvanising
- Supplied as standard with 2 swivel castors, 2 fixed castors and a push bar

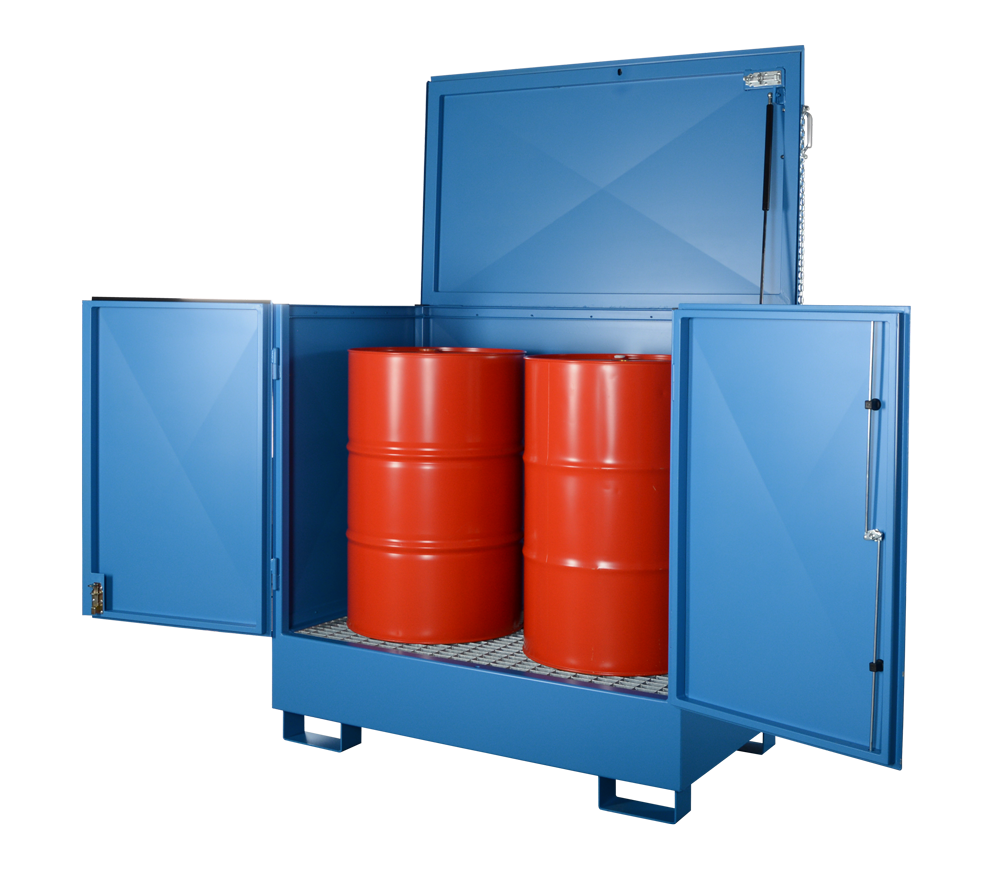

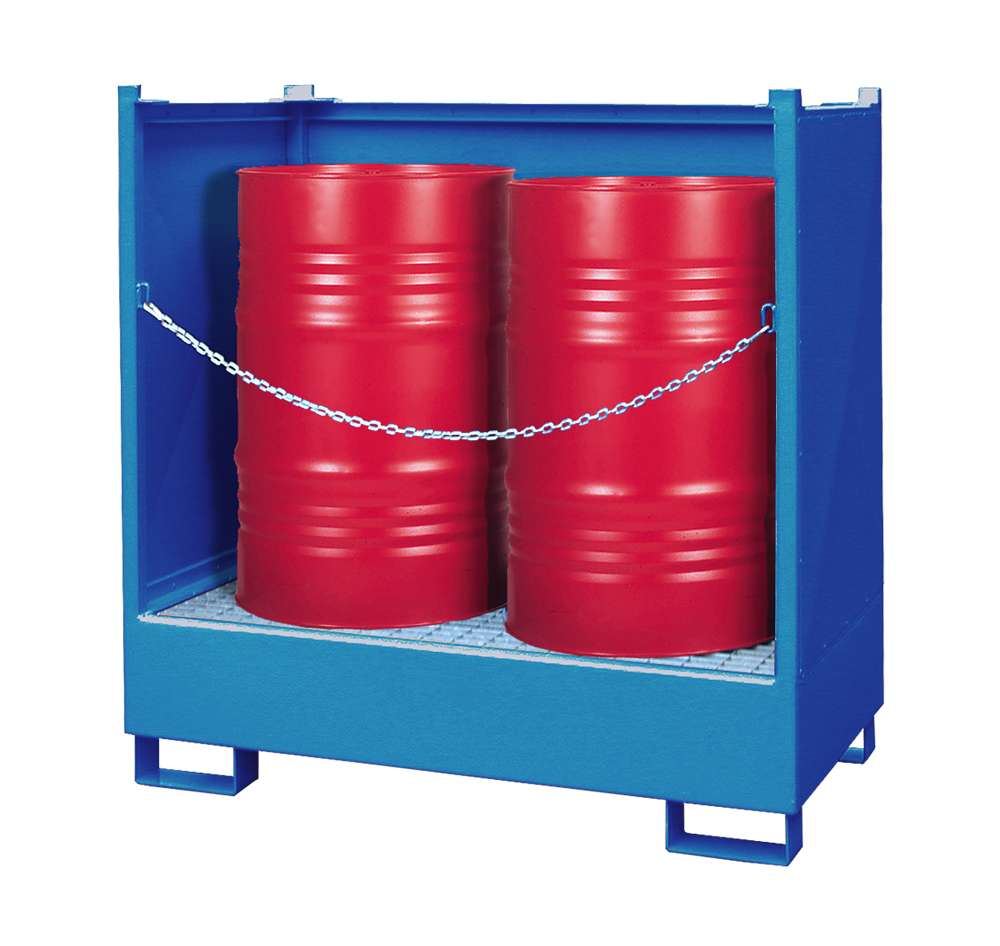

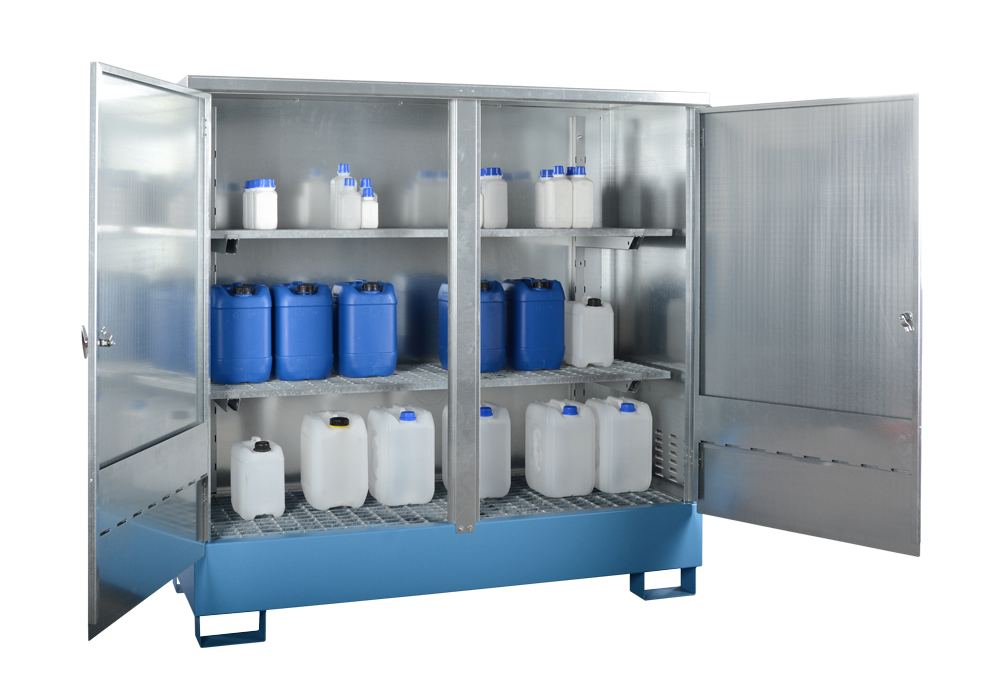

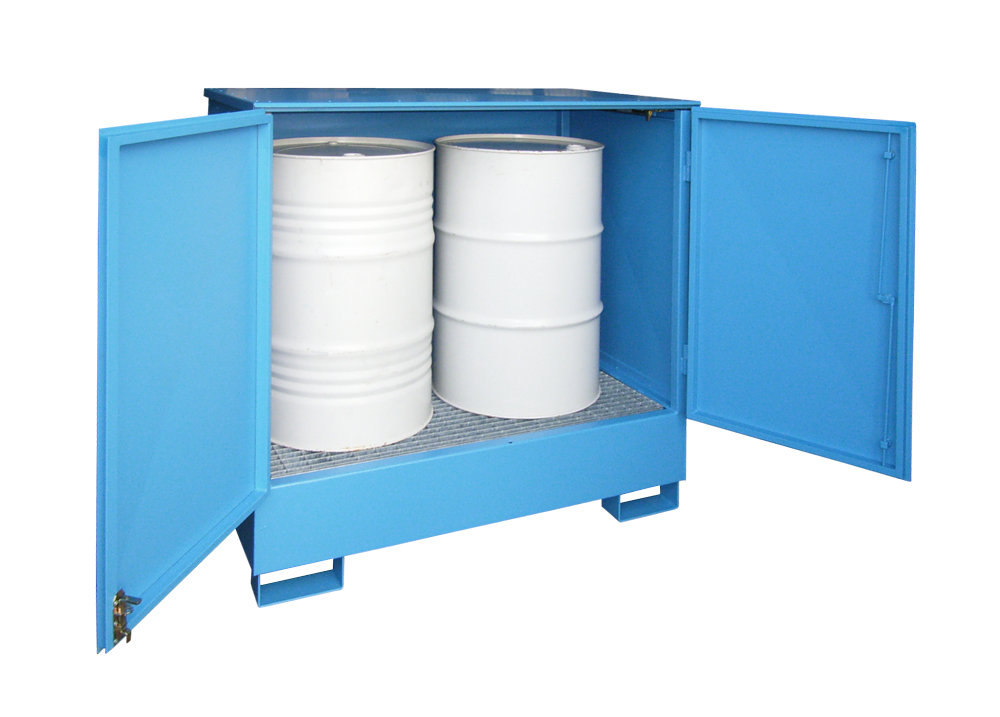

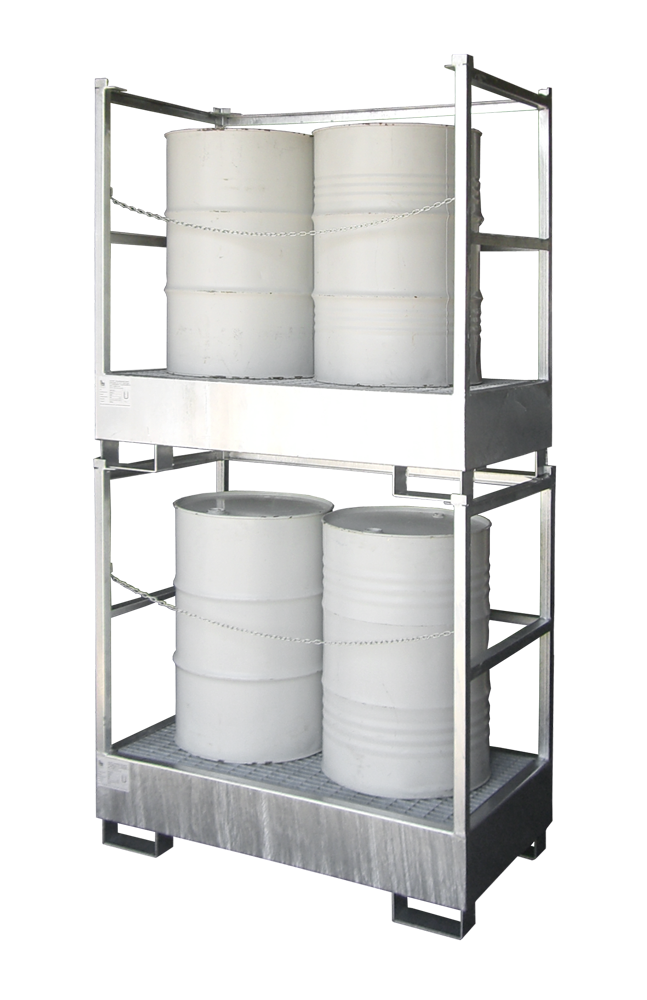

Water protection pallets with superstructures
For the storage of water-polluting and flammable liquids
- Sturdy construction made from 3 mm sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- 100 mm ground clearance for forklift transport
- Lockable versions, making them suitable for outdoor storage
- Capacity: 220 litres
- Corrosion protection through priming and painting, or Hot-dip galvanising
- NB version with natural ventilation for the passive storage of flammable substances
- Space-saving design thanks to the ability to stack the WSP-STS and SKS models in pairs

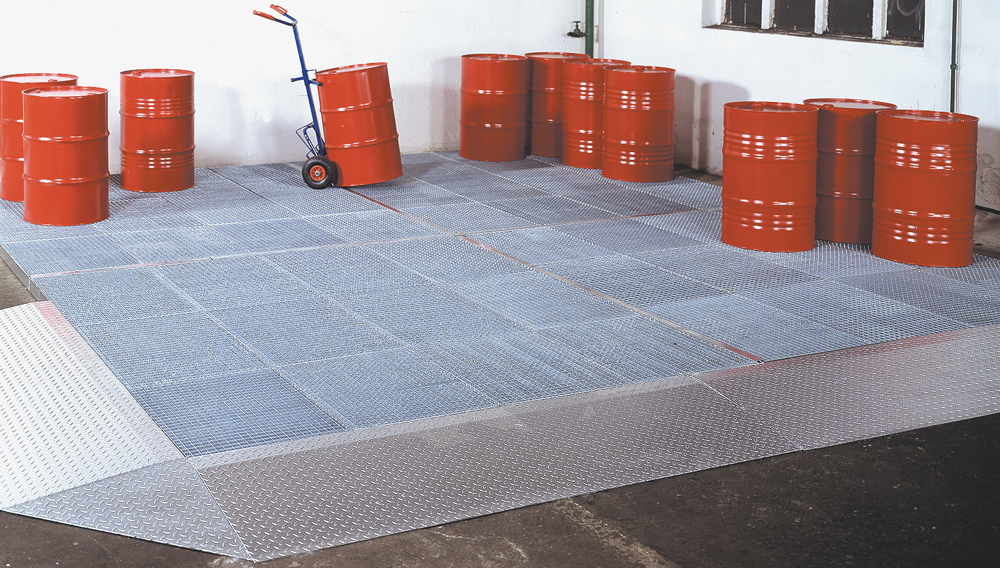

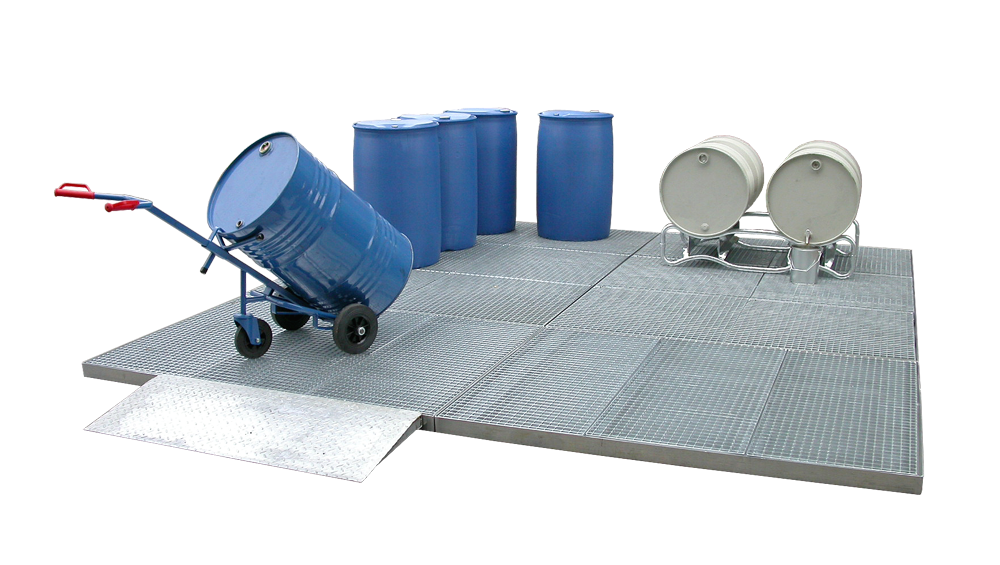

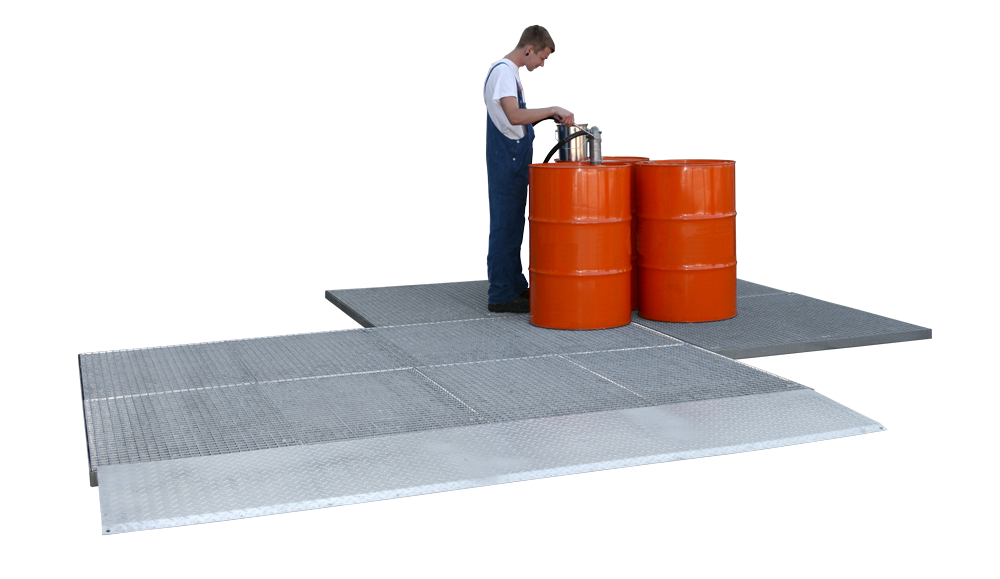

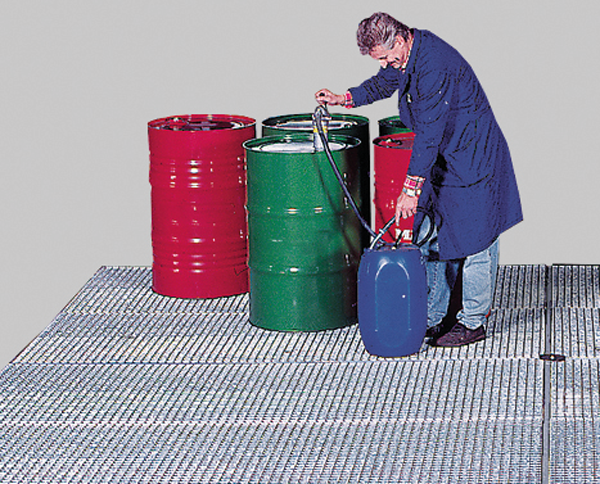

Floor safety elements
Substances that are hazardous to water and flammable require strict safety regulations not only during storage, but also during day-to-day operations such as decanting, handling and transport. Even empty containers must, by law, be stored over spill trays. Cost-effective and compliant solutions are required here. Safety floor panels are available for such cases.
- Constructed from 3 mm sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- Approved for use with water-polluting and flammable substances
- Individual segments can be combined in any way
- The distance between each element is 40 mm
- With removable, heavy-duty, hot-dip galvanised grating
- Accessible by hand pallet truck; by forklift or lorry on request
- High level of corrosion protection thanks to galvanisation
- Ideal for customised room lining; made to measure available!

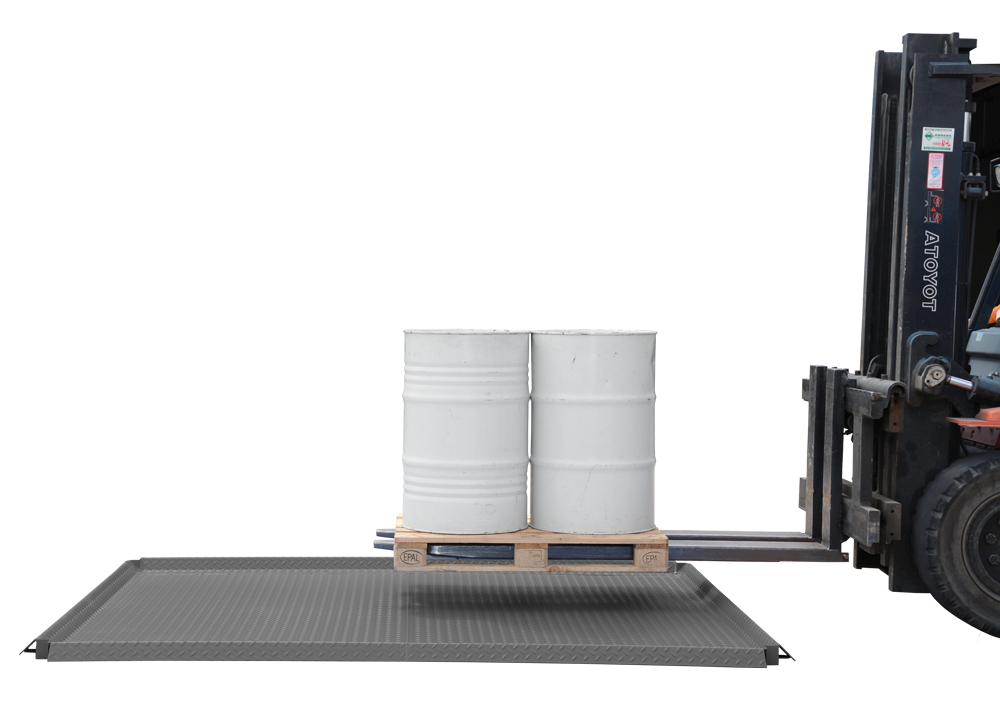

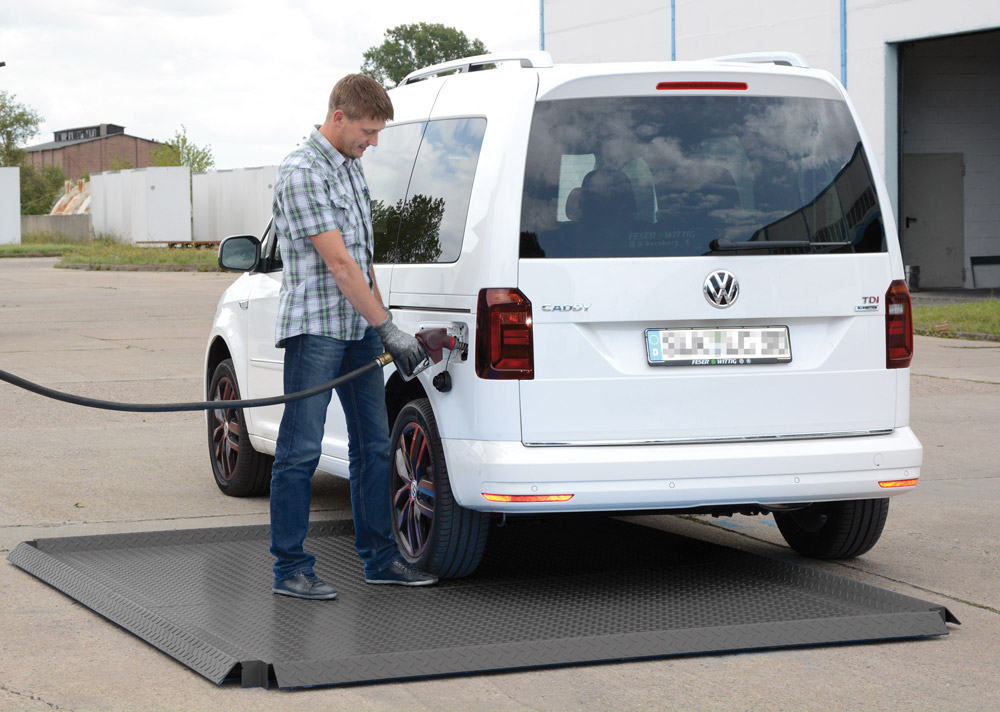

Area Protection Modular System
Suitable for use as a mobile transfer, filling and/or refuelling area with the ‘Ü’ mark
- Sturdy surface protection element
- 5/7 mm chequer plate, primed and painted in RAL 7016 – anthracite
- Sealed to be liquid-tight, with a factory test certificate
- Suitable for vehicles with a wheel load of up to 3 tonnes
- Can be extended and retrofitted as required in increments of the standard grid size
- Other dimensions and collection capacities available on request
- Delivery in individual sections – quick and hassle-free
open to interpretation → READY FOR USE IMMEDIATELY - Floor anchoring is not required, as the elements rest firmly on the floor under their own weight.

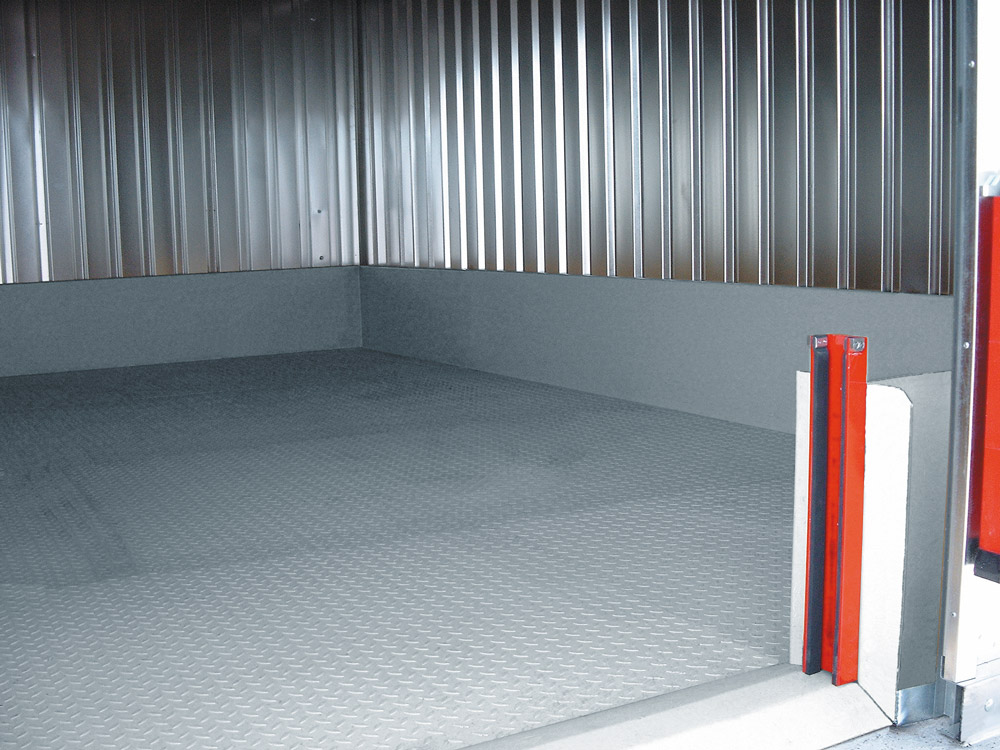

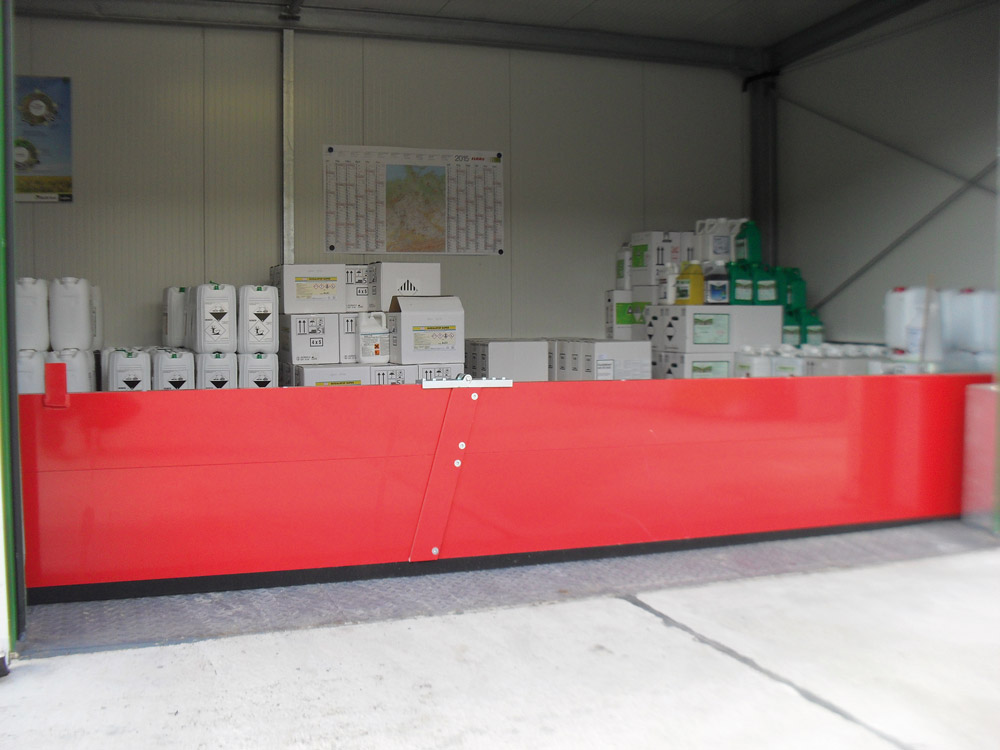

Steel room cladding / surface protection system
Areas of application:
- Storage areas with irregular shapes
- Storage areas subject to heavy loads
- Storage areas with a high storage capacity
- Fire-fighting water retention
- Covered open-air storage areas
- Storage areas with a pump sump
- Made to measure!

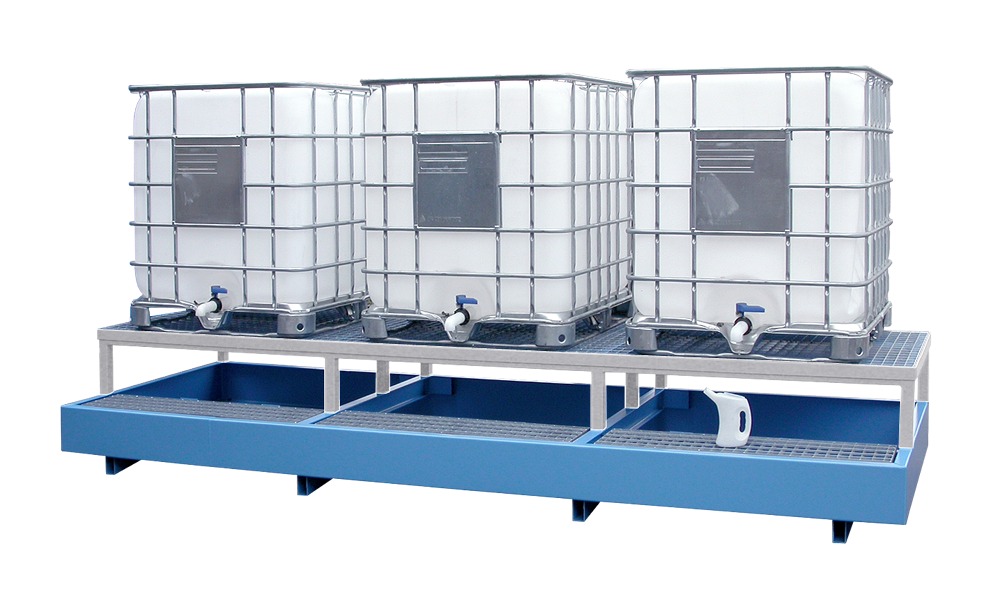

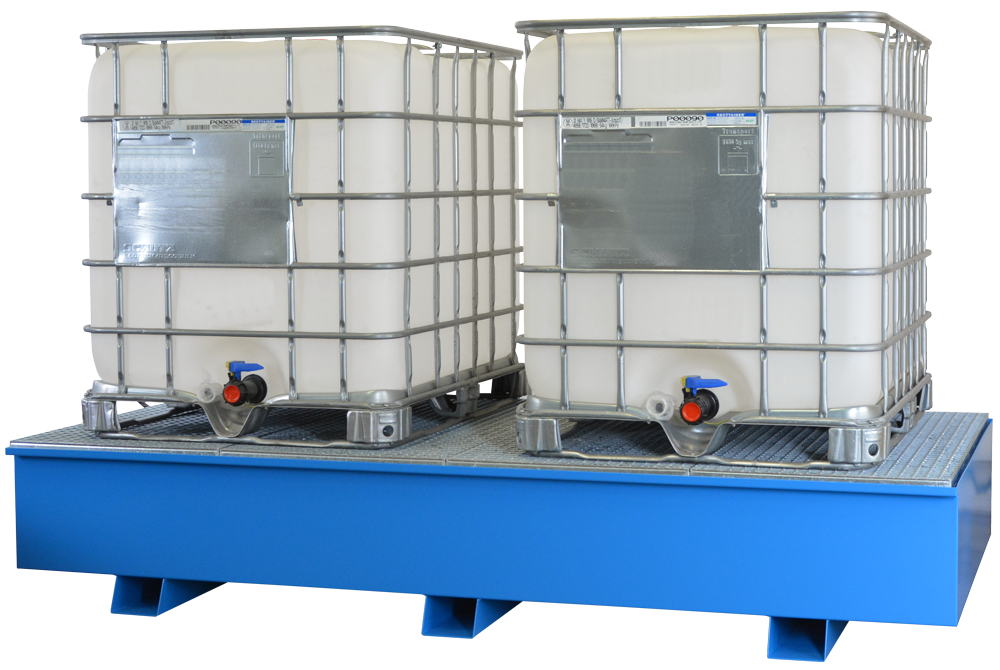

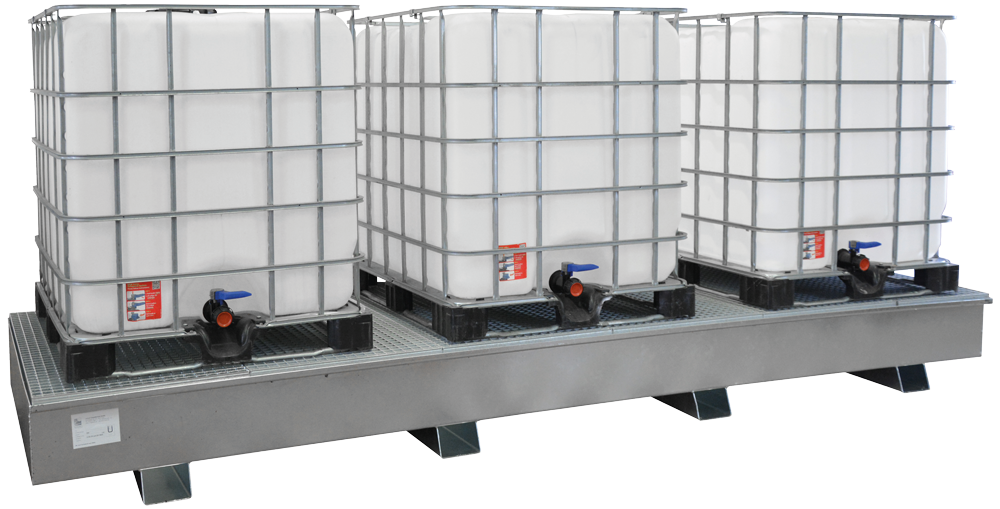

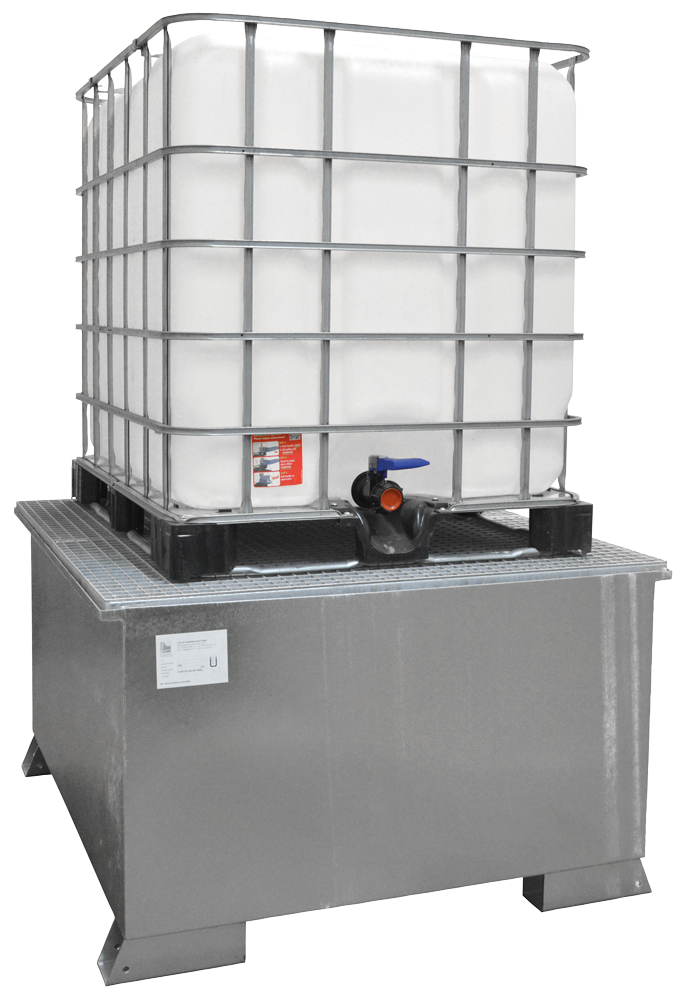

KTC – Tubs
Spill trays for 1,000-litre containers: for the storage and transfer of hazardous substances in bulk containers
- Constructed from 3 mm sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- Shelf level made of hot-dip galvanised, removable mesh grates
- 100 mm ground clearance for forklift transport
- High level of corrosion protection provided by priming and painting, or Hot-dip galvanising

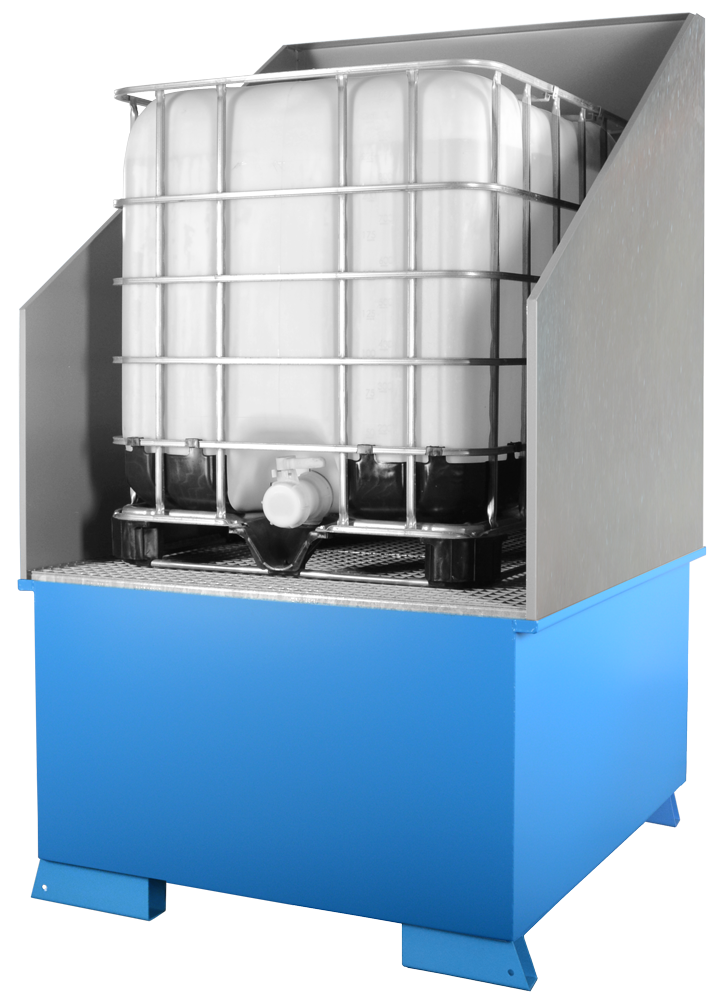

- Type WSP-KTC-SSS with galvanised splash guards (supplied in parts)
Spill trays for 1,000-litre containers with a filling block
- For the storage of acids and alkalis, PE tray liners are required for all types
in stock - Chemical resistance of the PE inserts according to the resistance list
- Capacity: 1,000 litres
- Load capacity 1,500 kg/m²
- All tubs are also available with a PE liner!

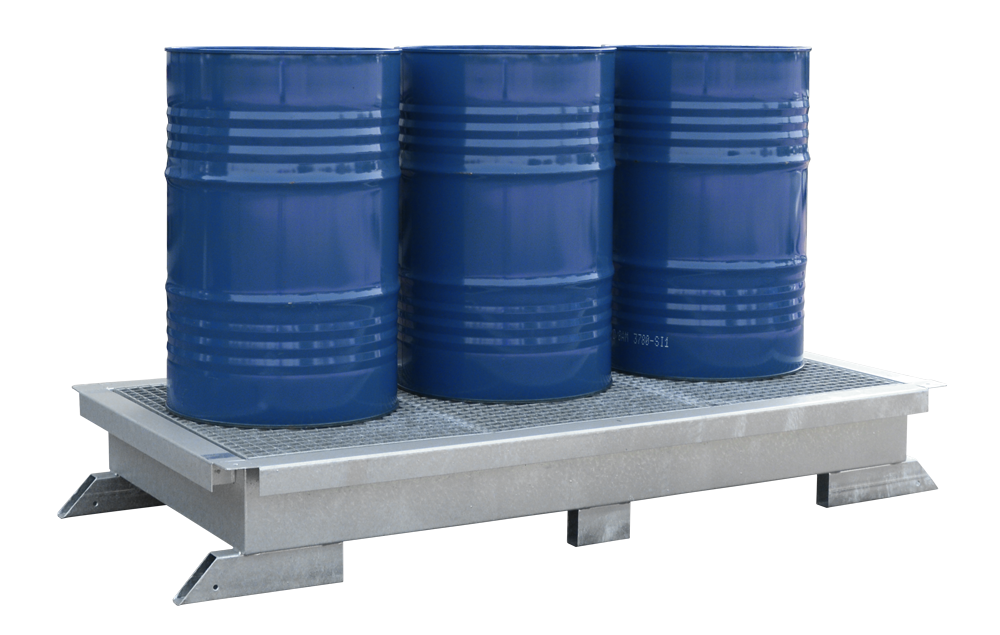

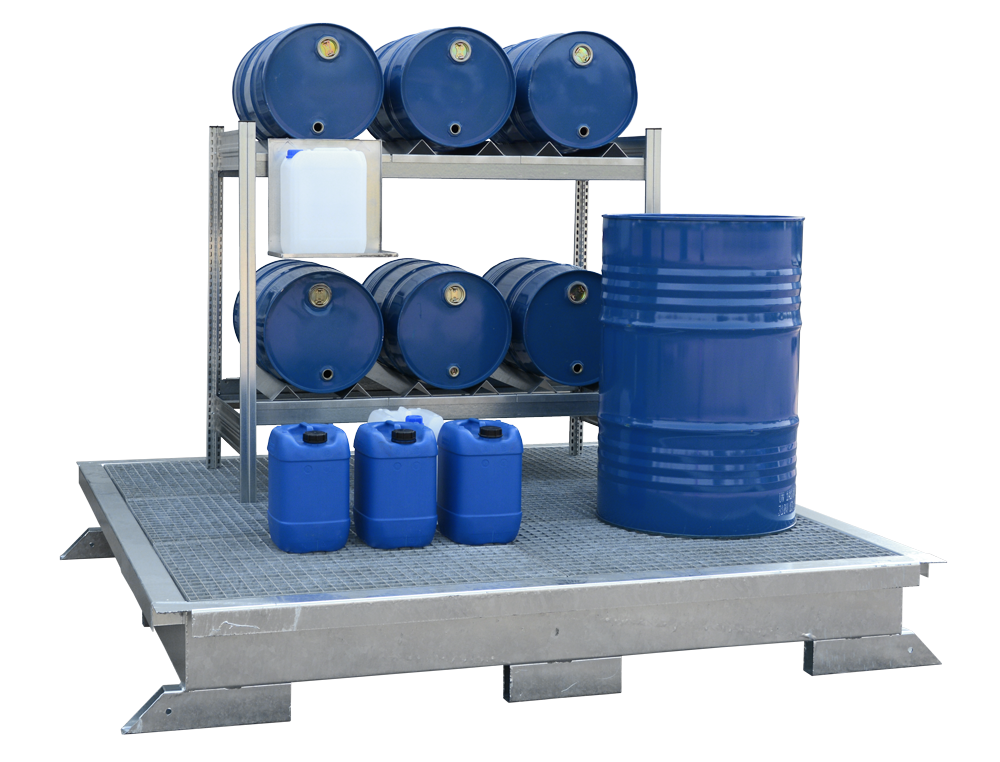

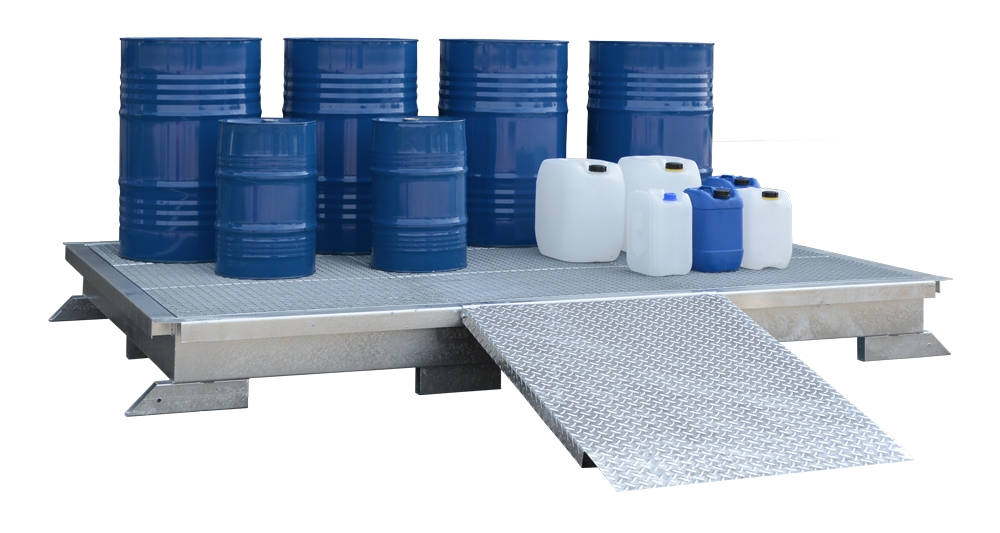

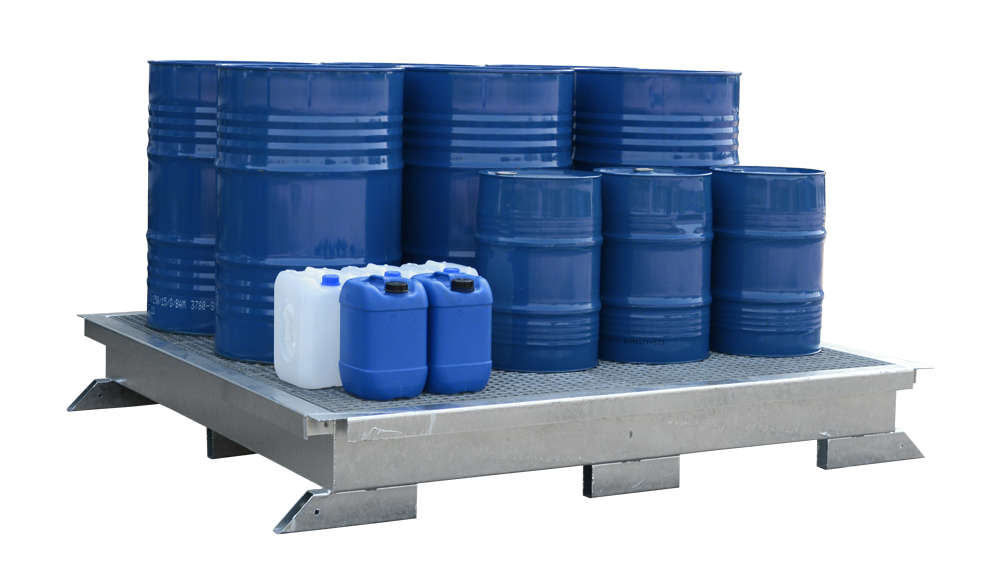

Large-capacity tubs
For the storage and filling of substances hazardous to water and flammable liquids
- Drip tray made from 3 mm hot-dip galvanised sheet steel
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- Removable, hot-dip galvanised grating
- Ground clearance for forklift transport
- Models GW 3 and GW 6 are also suitable for storing 1,000-litre containers
- The GW 4 and GW 6 models are delivered in individual segments; in other words, the individual trays are joined together on site using tray connectors to form a storage area

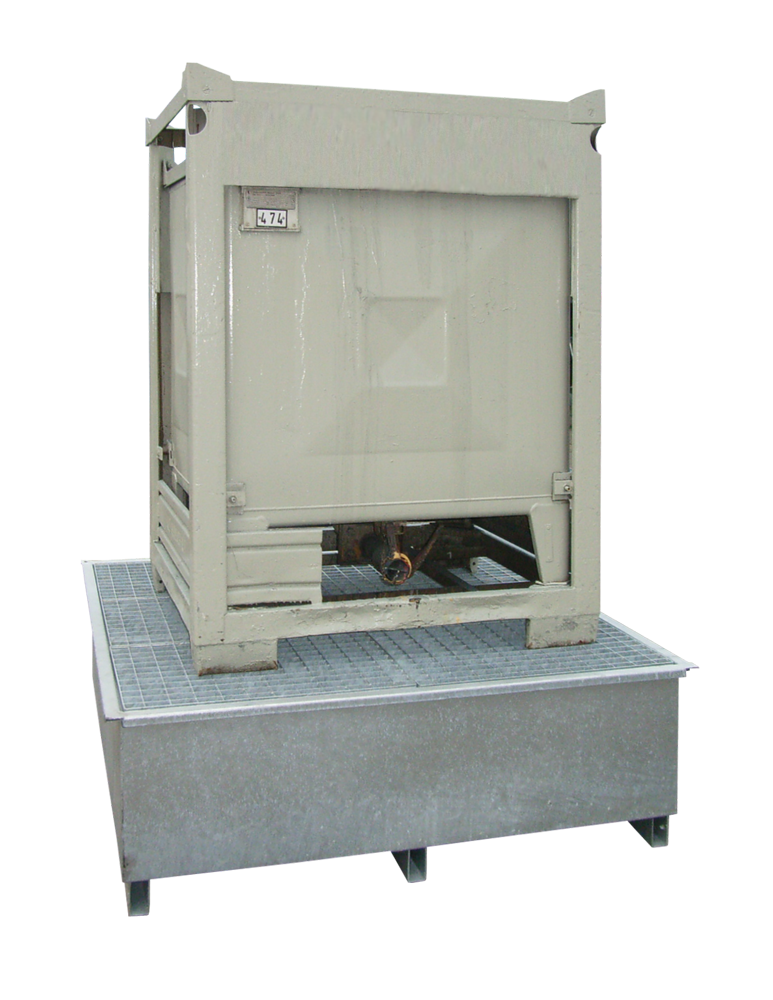

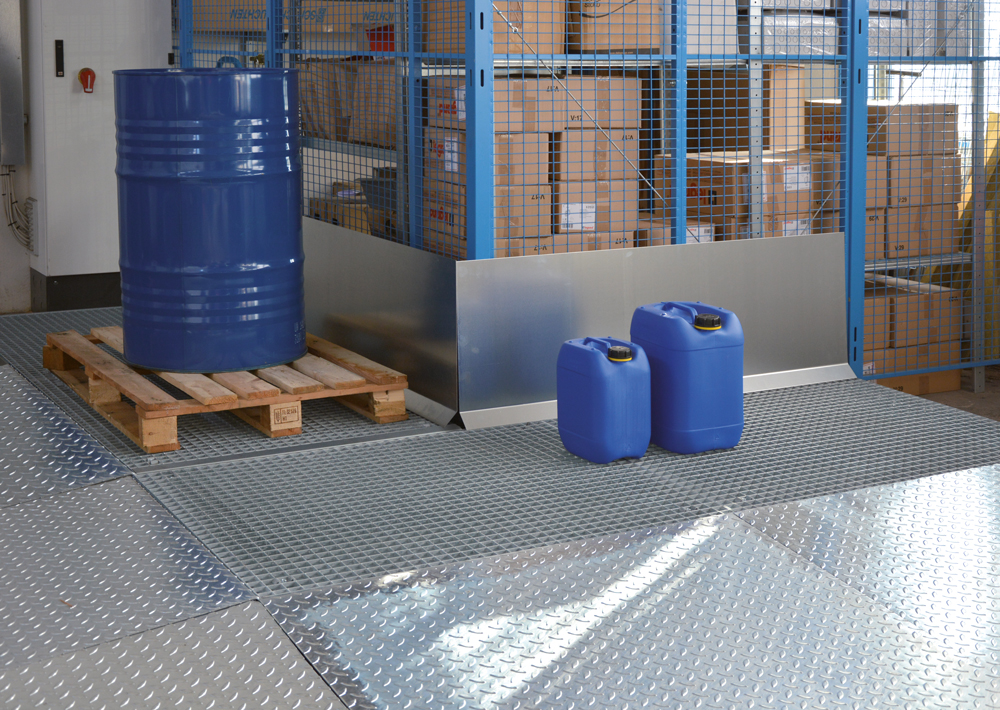

Bespoke products
In addition to our wide range of standard sump types, we also manufacture steel sumps to your specific requirements and specifications.
- Whether you need a larger capacity, a product for a specific purpose or a bespoke design, we’d be happy to advise you!
- Customised room lining tailored to local conditions
- Bespoke manufacturing; we design to your specific requirements!

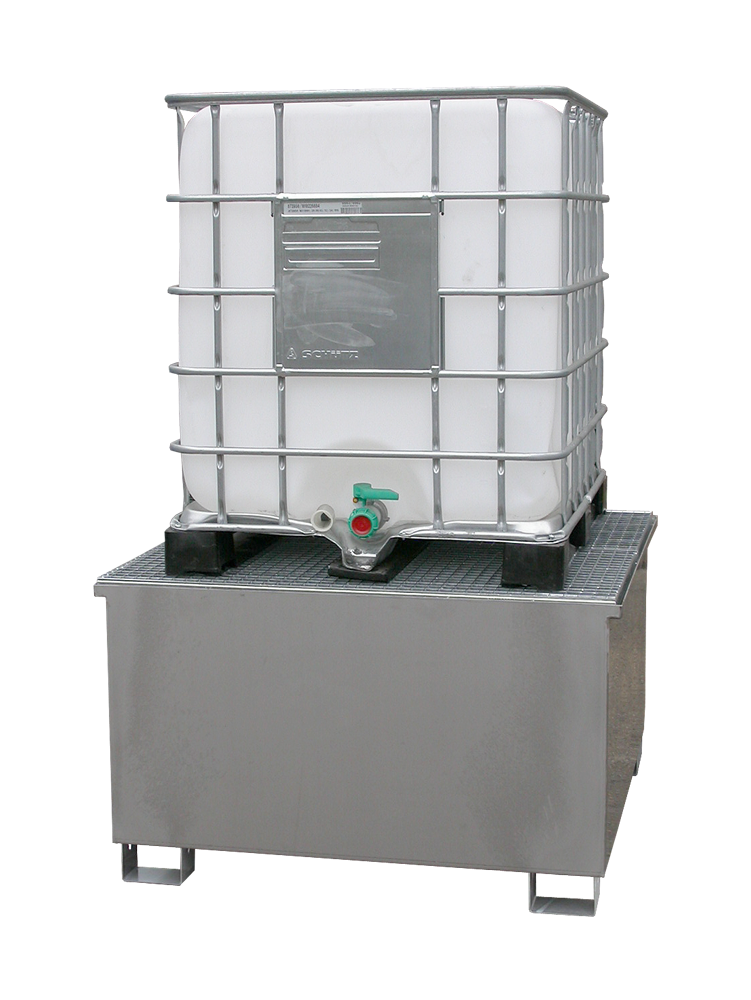

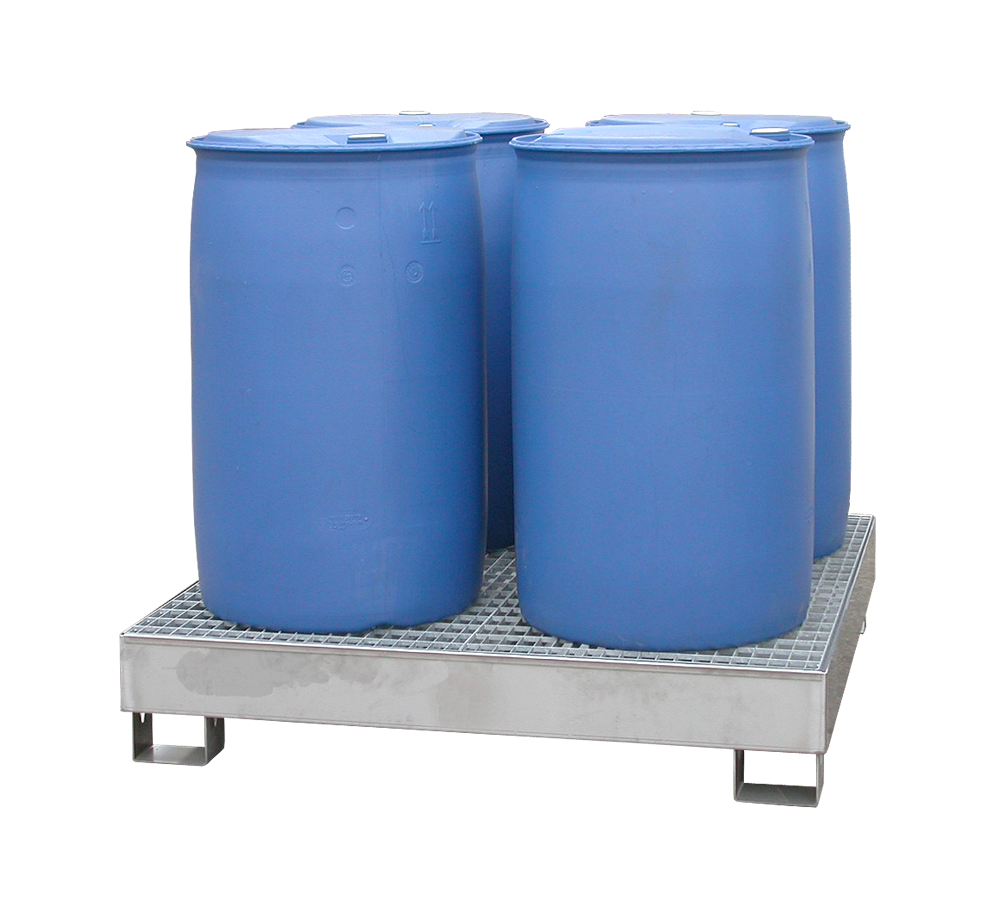

Stainless steel sump pallets
For the storage of water-polluting and flammable liquids
- Spill tray in accordance with AwSV – Ü mark according to StawaR
- Made from 1.4301 stainless steel, it is ideally suited for the storage of acids and alkalis
- Shelf level available with either hot-dip galvanised or stainless steel grating
- 100 mm ground clearance for forklift transport
- Stainless steel spill trays are particularly suitable for use in the electroplating, chemical and food industries

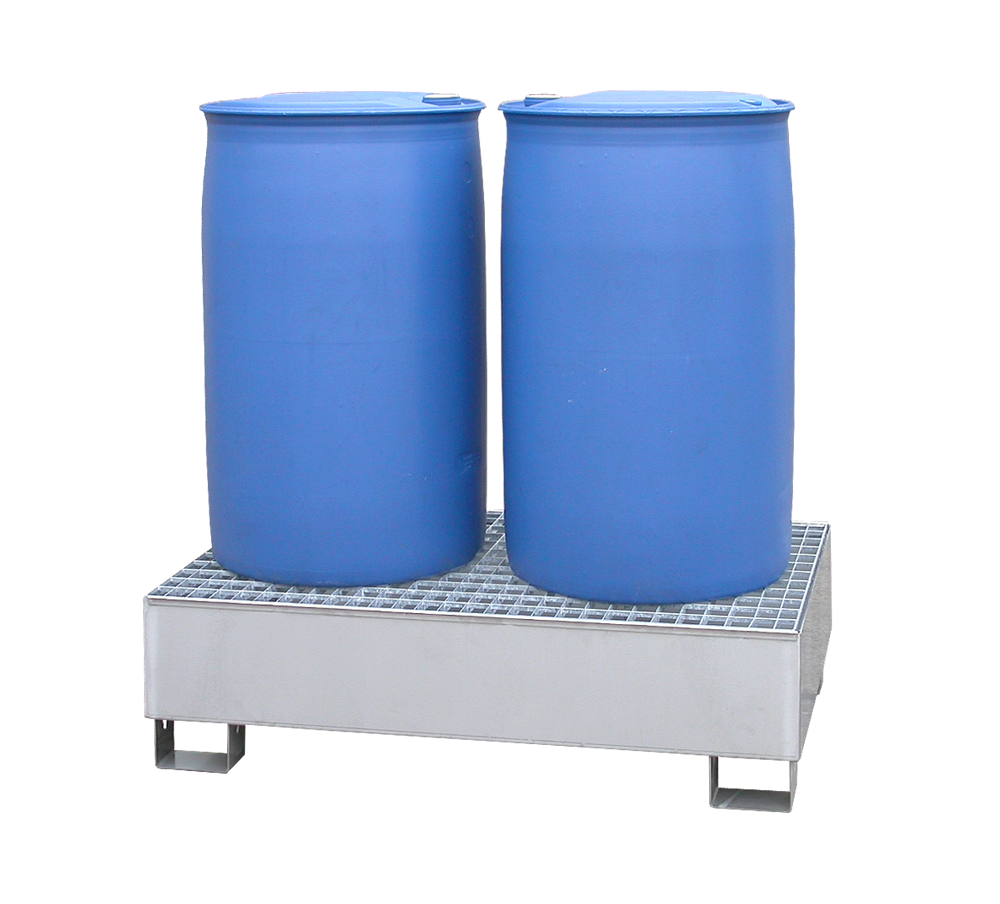

- The CW2 and CW4 series are specifically designed for storing 200-litre drums or small containers

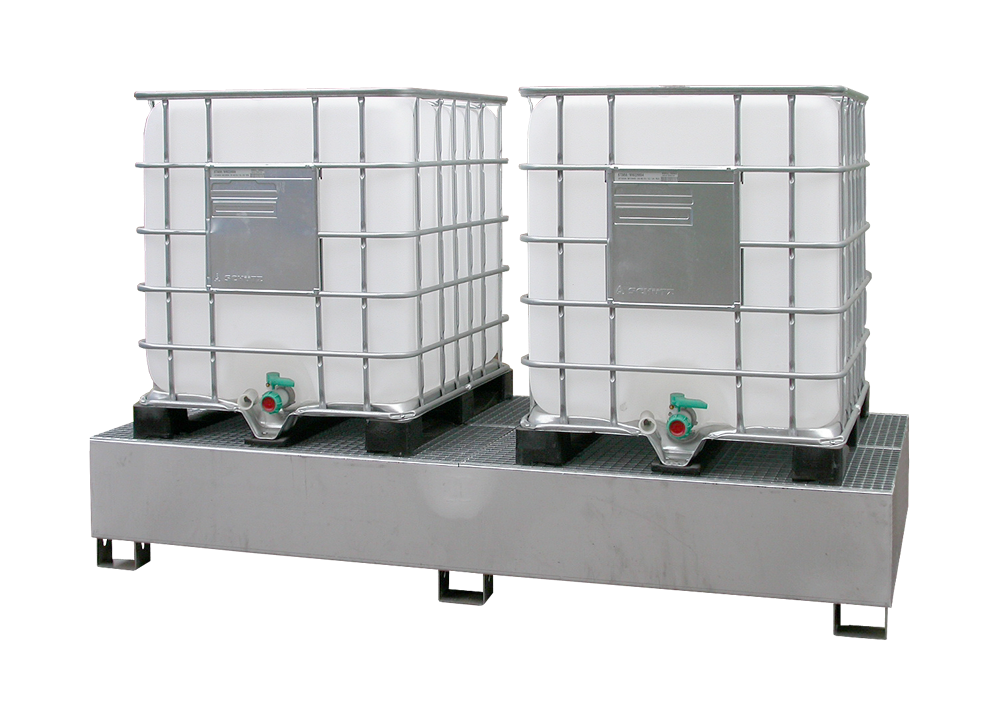

- The KTC-OS and KTC-ZW series are specifically designed for storing KTC / IBCs
