Transport and Storage of Lithium-ion Batteries
Storage and transport containers
Certified storage and transport containers for lithium-ion batteries
Lithium-ion batteries are classified as Class 9 dangerous goods under the ADR and are subject to particularly stringent safety requirements, especially during operation and transport
Our tested and UN-certified container systems offer businesses in the skilled trades, industry and logistics sectors a reliable safety solution for day-to-day work and mobile use
Table of Contents
Storage and transport containers for lithium-ion batteries
Our lithium-ion storage systems offer reliable protection and security for your business

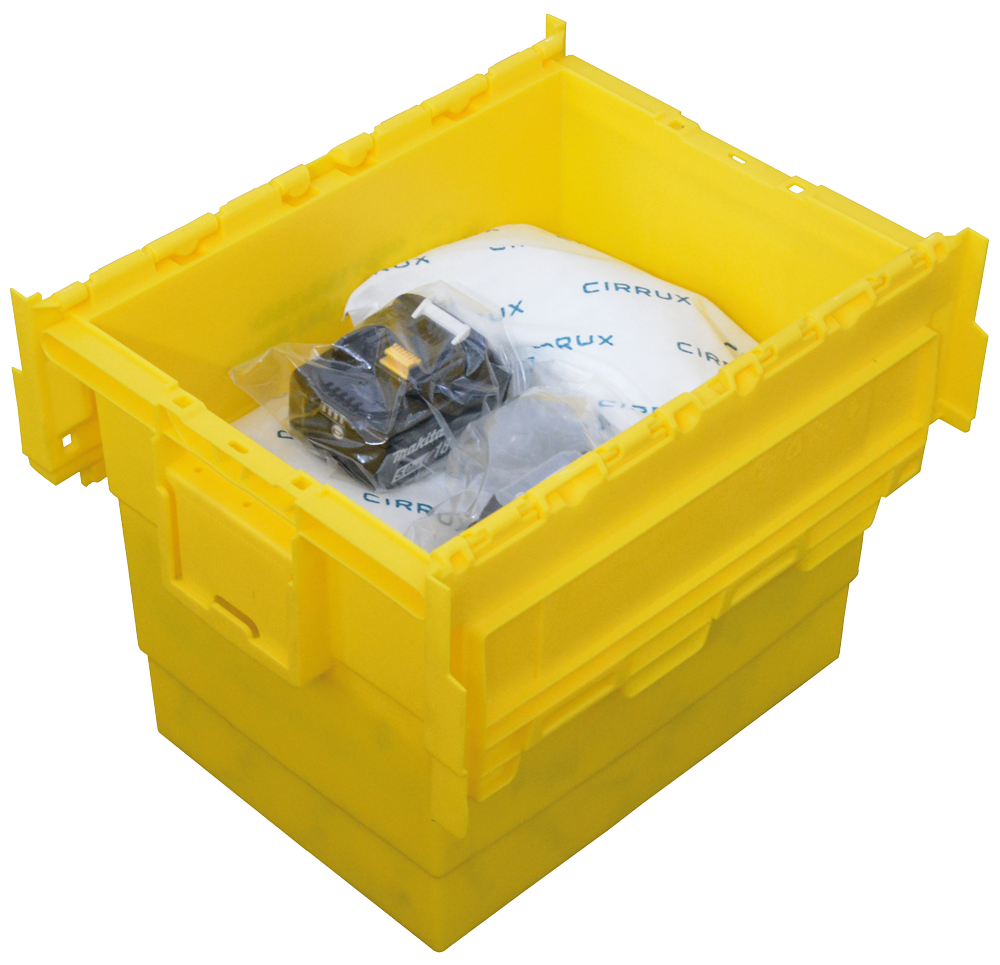

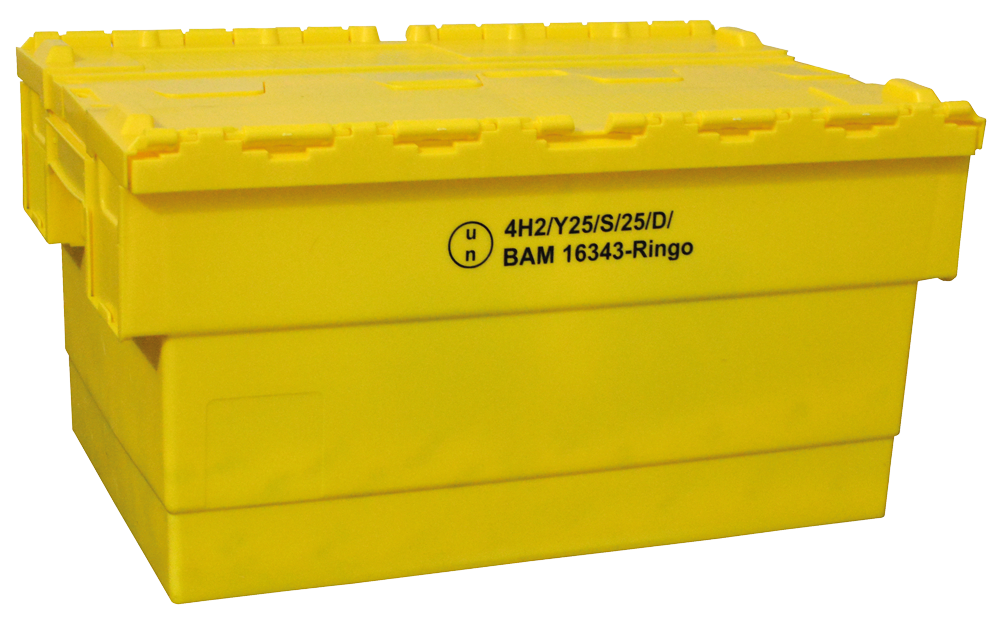

Dangerous Goods Transport Container Set D
- Container for the transport of dangerous goods, specially designed for lithium-ion batteries in Packing Group II (Code Y)
- With UN approval number
- Yellow plastic container with a lockable, two-part lid secured with cable ties

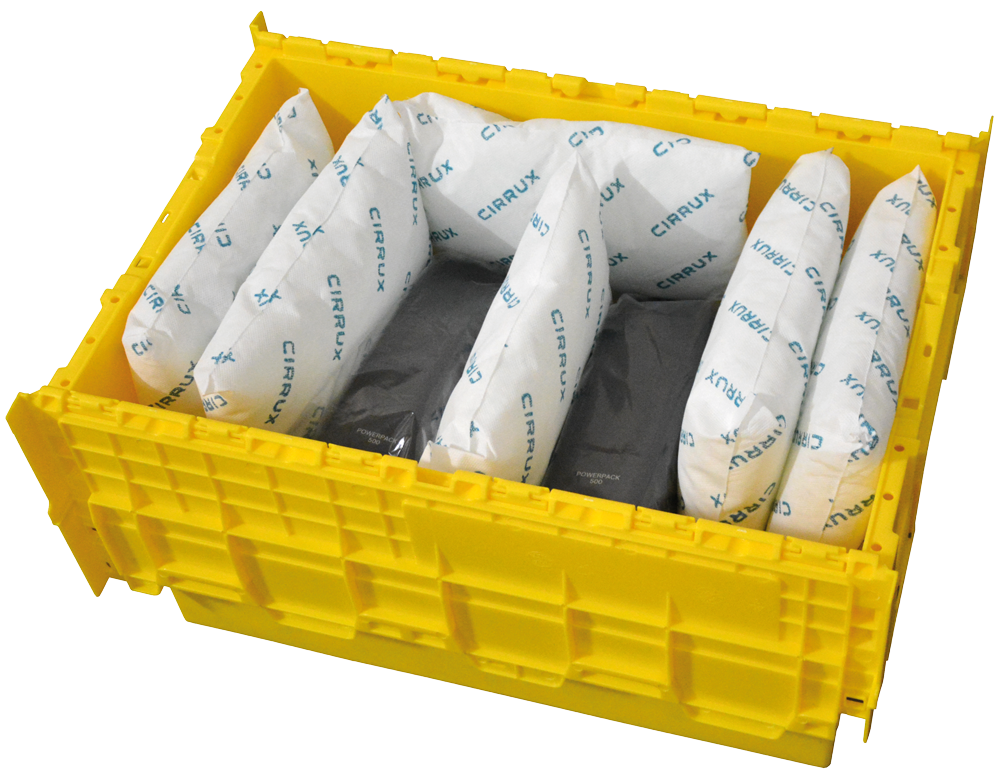

- Equipped with plastic bags (batteries are packed individually in plastic bags) and Cirrux glass-fibre hazardous goods cushions, which melt at a specified temperature and spread over the source of the fire, thereby cutting off the oxygen supply
- D-430 set containing 6 zip-lock bags, 6 cable ties and 10 hazardous goods cushions (max. gross weight 15 kg)
- D-630 set containing 6 zip-lock bags, 6 cable ties and 20 hazardous goods cushions (max. gross weight 25 kg)
Technical Specifications | The LaCont hazardous goods transport container
| Model designation | External dimensions W x D x H (mm) |
|---|---|
| D-430 Set | 400 x 300 x 315 |
| D-630 Set | 600 x 400 x 315 |

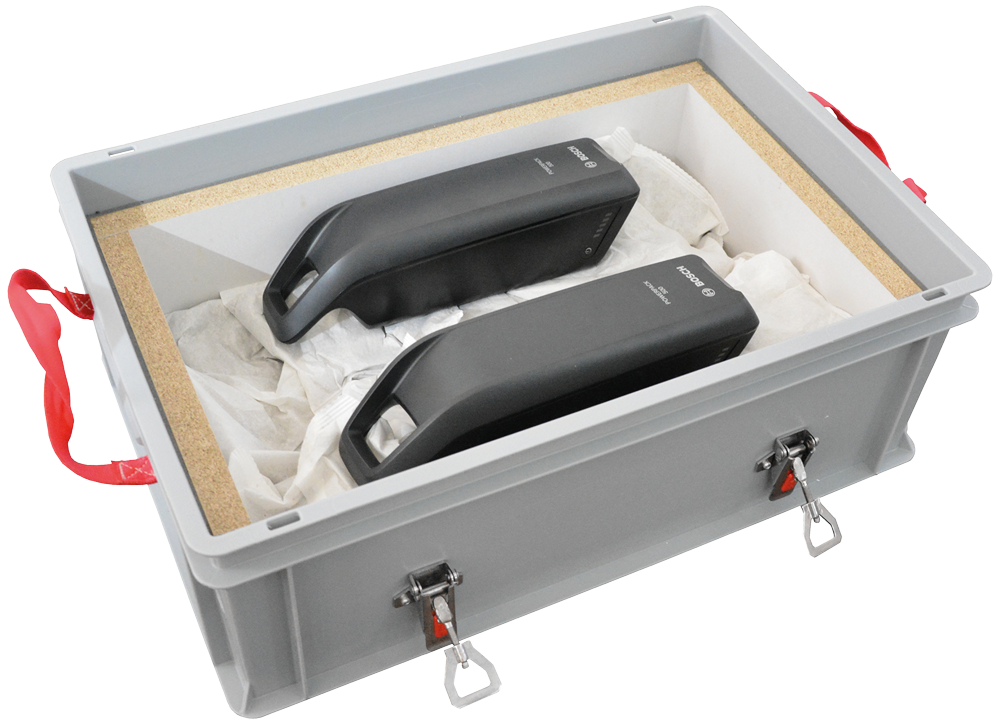

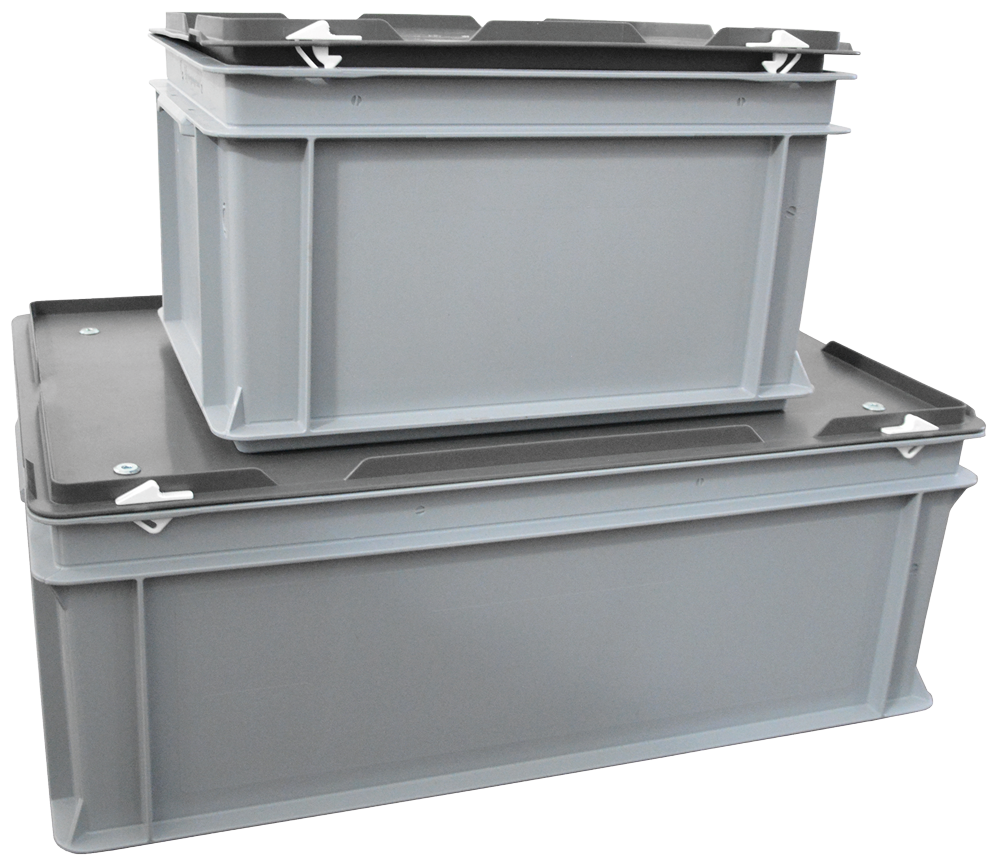

F90 storage and transport containers

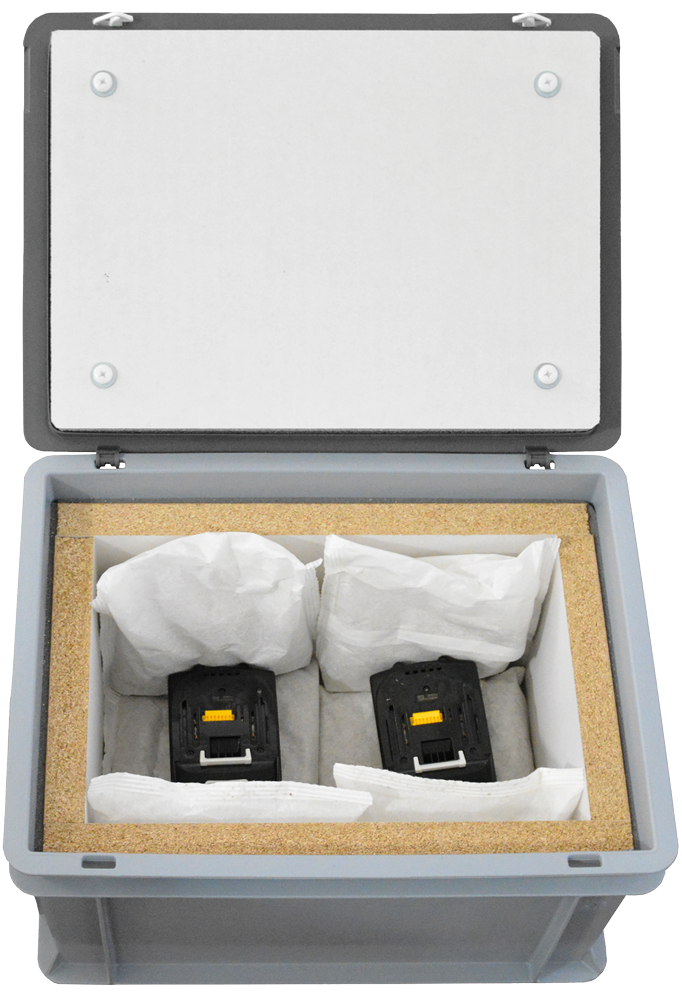

- Storage containers (Priopack) or storage and transport containers (Priopack T) for faulty or damaged batteries posing an increased fire risk
- Grey plastic container, lined with non-combustible thermal insulation material and offering fire resistance of over 90 minutes
- 90 minutes’ fire resistance verified by fire testing in accordance with DIN EN 1363-1:2012-10

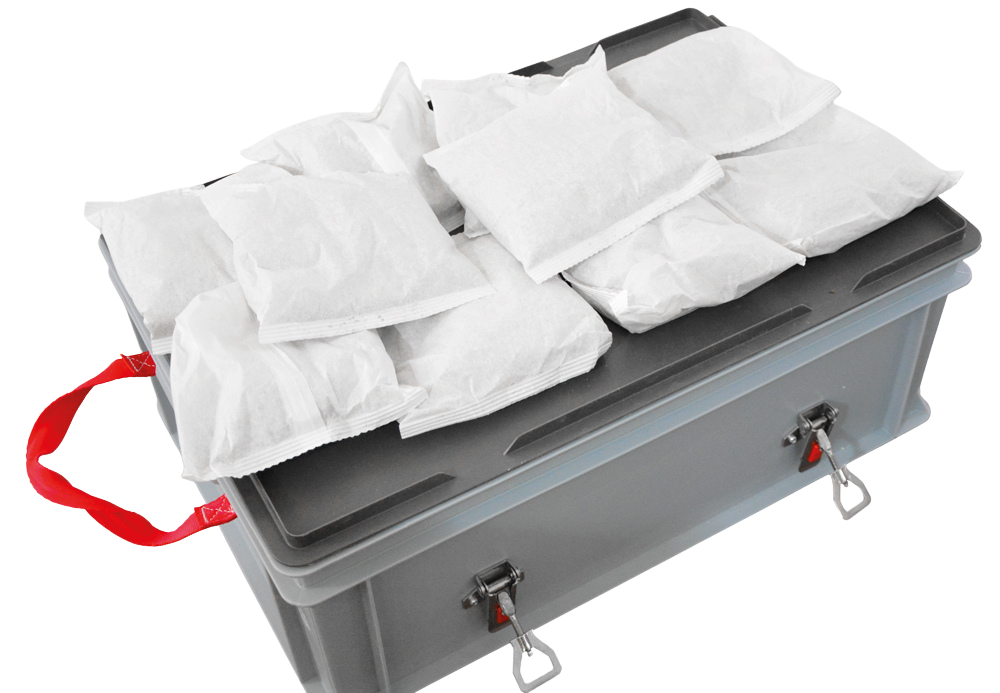

- All containers are fitted as standard with additional vermiculite filling and insulation material. This ensures that lithium-ion batteries (rechargeable batteries) are completely enclosed.

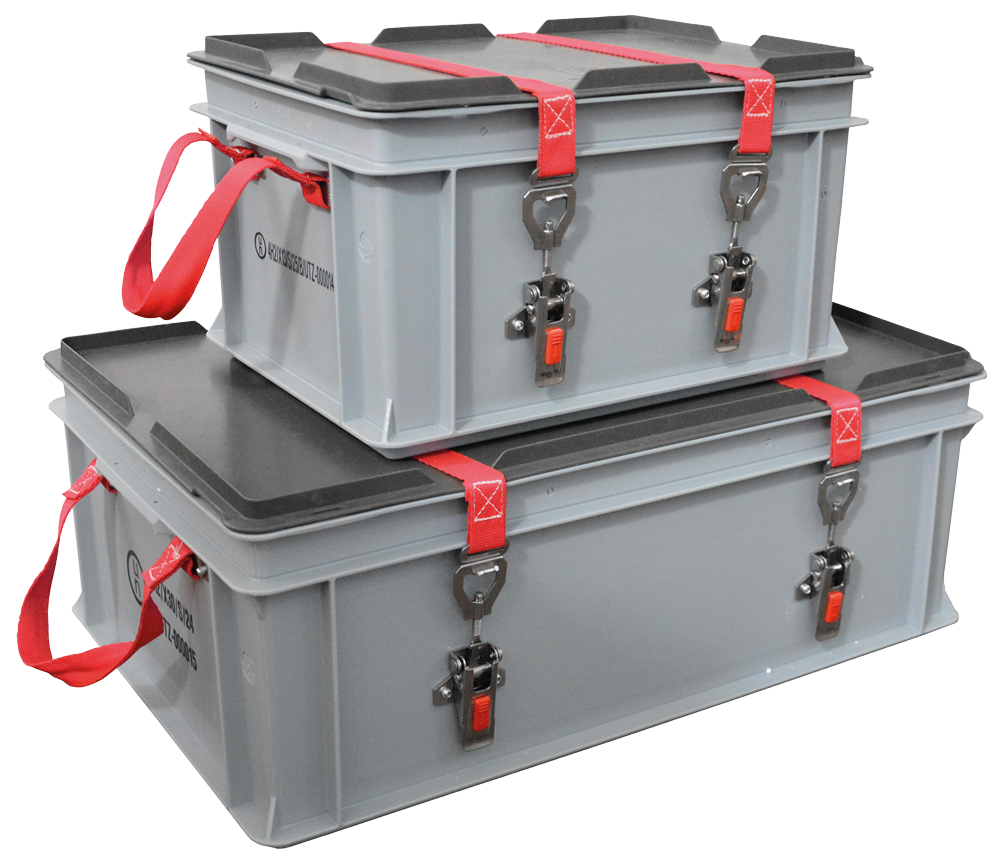

- Stackable containers, with a secure-fitting lid; the Priopack T model also features tension straps and quick-release fasteners; the Priopack T model is also fitted with carrying handles
Technical Specifications | The LaCont F90 Storage and Transport Container
| Model designation | Priopack 40 storage container | Priopack 60 storage container | Priopack T 40* storage and transport container* | Priopack T 60** storage and transport containers** |
|---|---|---|---|---|
| External dimensions W x D x H in mm | 400 x 300 x 235 | 600 x 400 x 235 | 400 x 300 x 235 | 600 x 400 x 235 |
| Internal dimensions W x D x H in mm | 307 x 207 x 164 | 507 x 308 x 164 | 307 x 207 x 144 | 507 x 308 x 144 |
| Unladen weight in kg | 8 | 15 | 8 | 15 |
| Max. payload for dangerous goods in kg | 5,5 | 15 | 5,5 | 15 |
| Number of sachets of filler | 24 | 40 | 24 | 40 |
* UN approval number: UN4H2/X13/S…
** UN approval number: UN4H2/X30/S…
| Accessories |
|---|
| Additional vermiculite filler packs, 180 x 150 mm (8 per pack) |

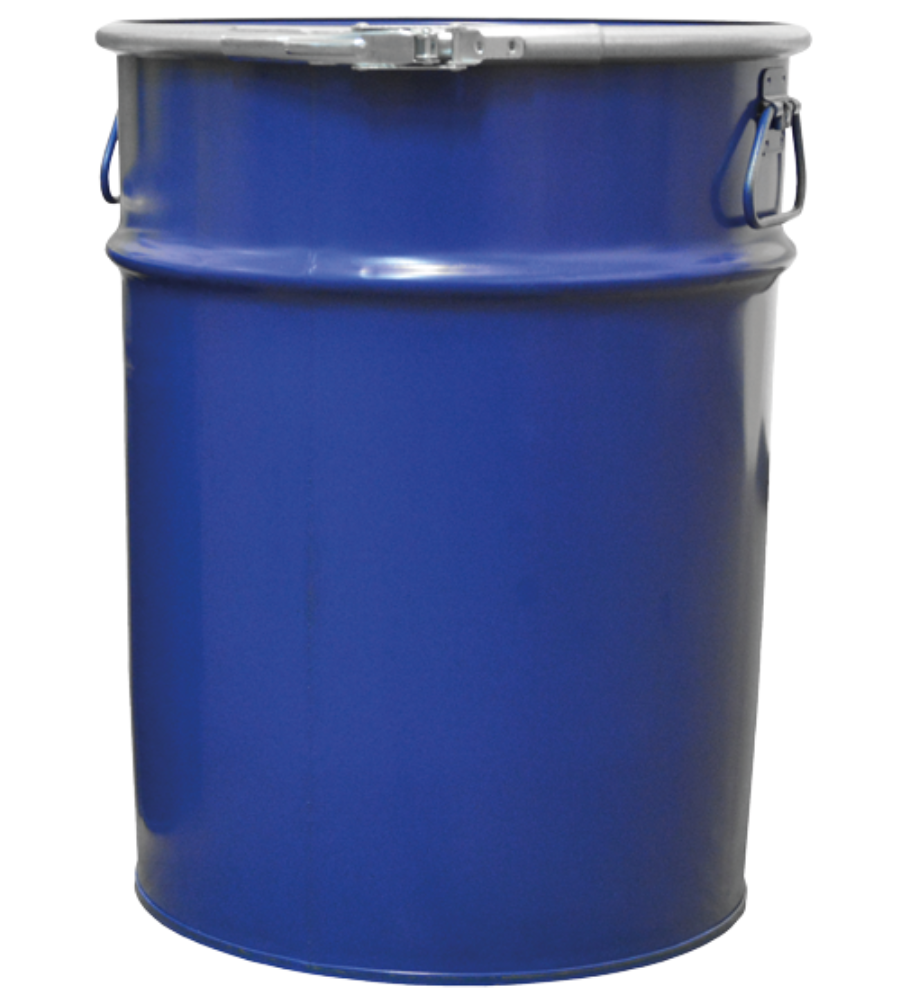

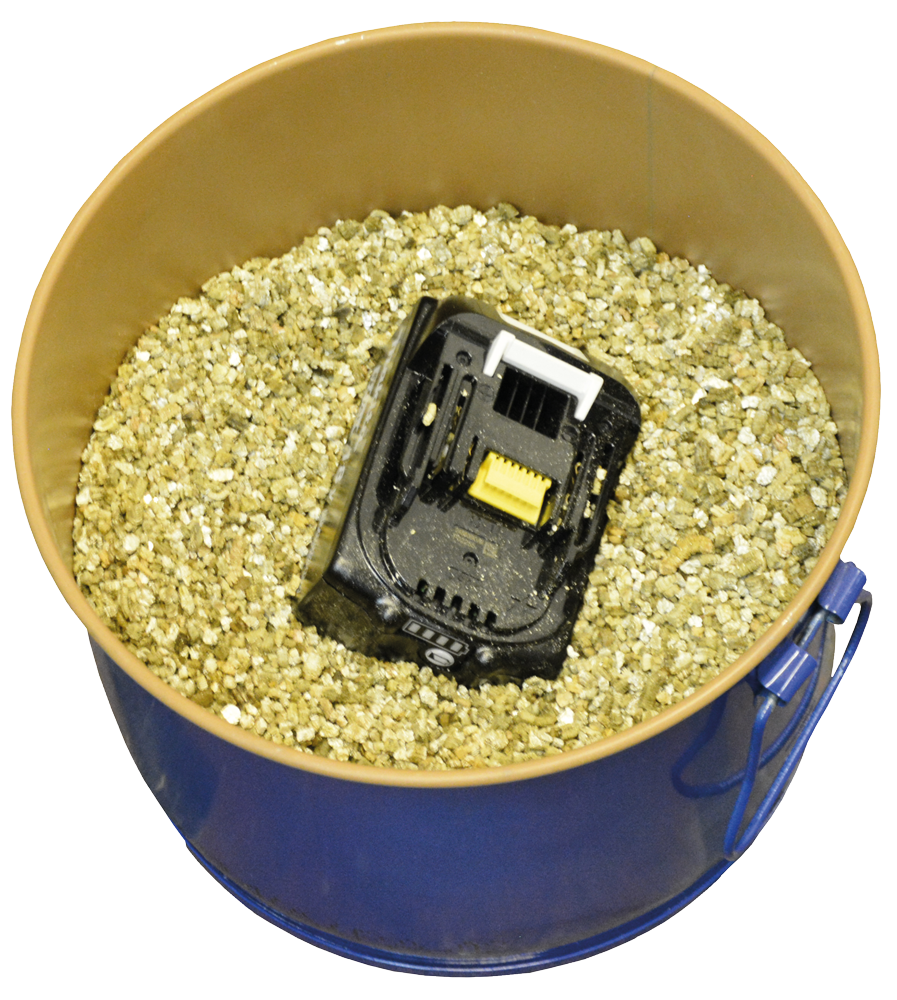

LiBa Barrel
Collecting, storing and transporting with the LiBa®Barrel

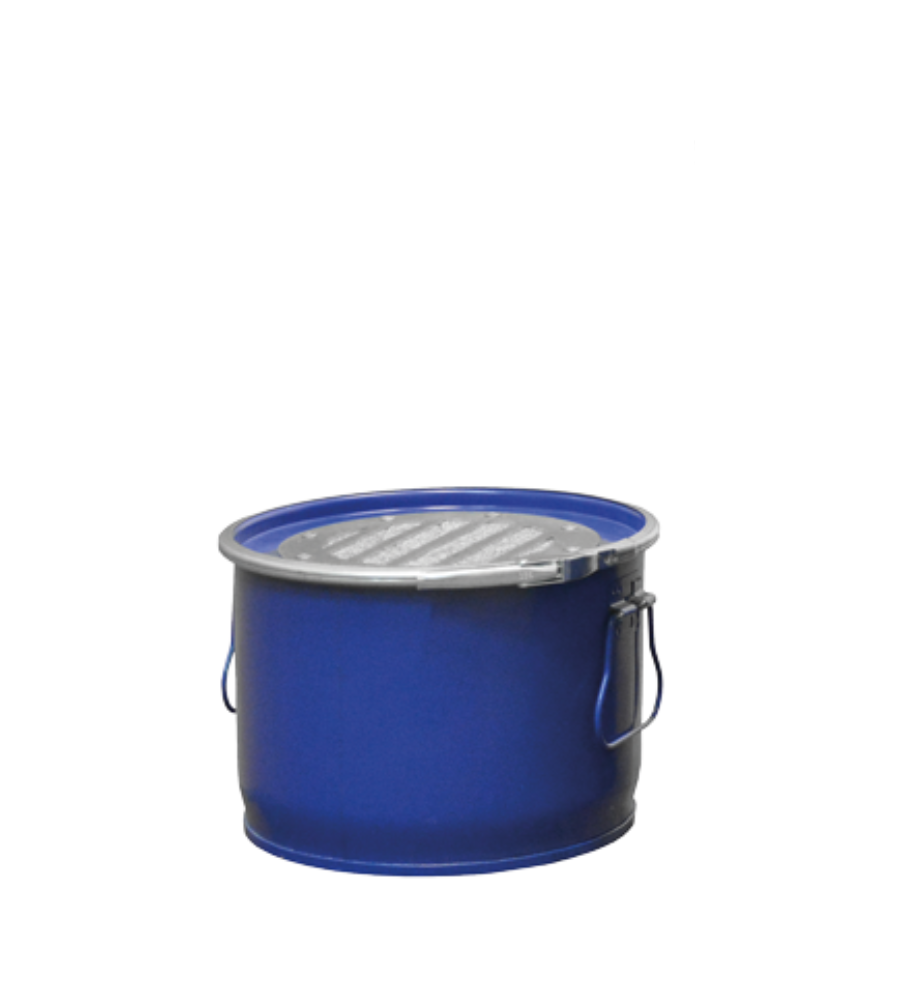

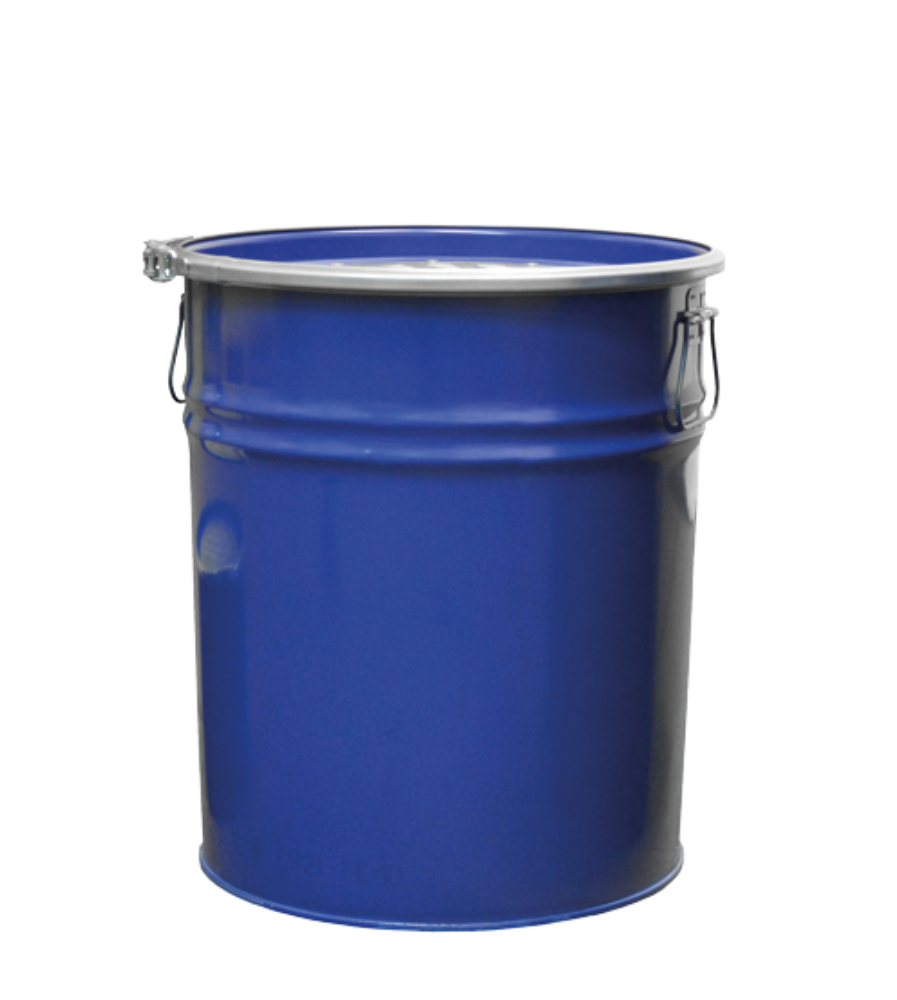

The LiBa®Barrel is a safe solution for the collection, storage and transport of defective lithium-ion batteries (rechargeable batteries) in accordance with SV 377 ADR. The drums are available in capacities of 6 l, 30 l, 50 l and 212 l and can be sealed using a clamping ring and a safety lock. The lid is fitted with a LiBa®Vent pressure relief valve. The drums are pre-filled with vermiculite (1/3).
Technical Specifications | The LaCont LiBa®Barrel
| Capacity (litres) | Height (mm) | Diameter (mm) | Weight (kg) |
|---|---|---|---|
| 6 | 180 | 230 | 1,95 |
| 30 | 396 | 328 | 3,30 |
| 50 | 515 | 375 | 4,75 |
| 212 | 874 | 605 | 25,50 |

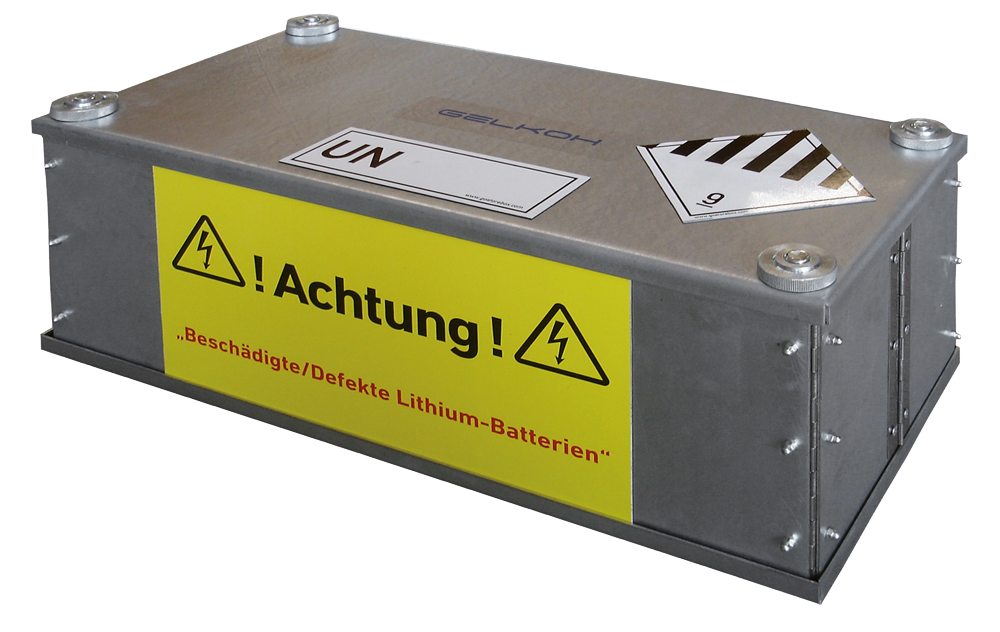

LiBa Pac for lithium-ion batteries (rechargeable batteries) weighing up to 40 kg
With the LiBa®Pac, in combination with the LiBa®Bag, we offer a two-stage packaging solution for lithium-ion batteries (rechargeable batteries) weighing up to 40 kg, in accordance with SV 376 and SV 377 of the ADR. It is also suitable for the shipment of prototypes in accordance with ADR. The reusable box meets the highest protection requirements in accordance with Packaging Group I (X coding) and prevents the spread of fire, even in the event of batteries undergoing a chemical reaction.
Technical Specifications | The LaCont LIBA®PAC
| Size | External dimensions L x W x H (mm) | Internal dimensions L x W x H (mm) | Gross weight (kg) | Max. payload (kg) |
|---|---|---|---|---|
| S | 380 x 290 x 210 | 340 x 250 x 160 | 17,0 | 6,0 |
| L | 485 x 230 x 210 | 430 x 185 x 160 | 20,3 | 9,3 |
| X | 500 x 250 x 200 | 480 x 230 x 170 | 52,0 | 40,0 |

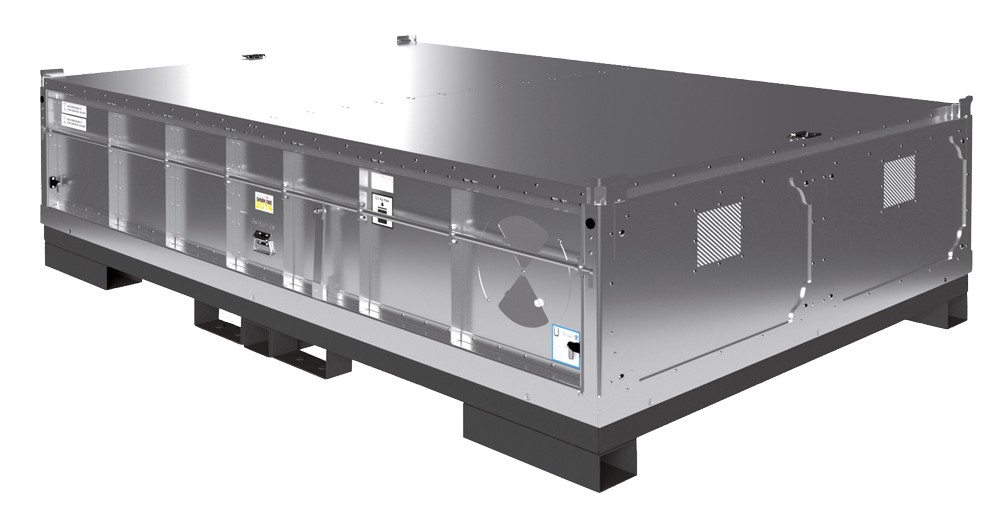

LiBa Box – The all-in-one solution
The LiBa®Box is designed for the storage and transport of lithium-ion batteries. It is equipped with a spill tray, fire-resistant inner packaging, a fire detection system and a fire-extinguishing system. This system can both extinguish a fire and, at the same time, handle the exhaust gas treatment from the bursting rechargeable batteries. This concept provides you with a safe, comprehensive solution.
Technical Specifications | The LaCont LIBA®BOX
| Size | Dimensions (mm) | Weight (kg) |
|---|---|---|
| XS | 900 x 650 x 553 | 90 |
| M | 1200 x 800 x 990 | 176 |
| XL | 1200 x 1200 x 1800 | 350 |
| XLs | 2000 x 1400 x 990 | 430 |
LaCont Container Systems | Certified hazardous goods safety for your business
As there is still no clear legislation governing the storage of lithium-ion batteries, the strict requirements of dangerous goods legislation and those of property insurers (VdS) apply in practice. With LaCont transport and storage containers, you can safeguard your business and protect your staff.
Whether for collecting used batteries, shipping prototypes or the secure quarantine storage of damaged batteries, our products meet the highest safety standards
The benefits of our battery transport and storage containers
-
Certified safety in accordance with ADR: UN approvals with X and Y codes for the safe transport of dangerous goods by road
-
Certified fire safety: Fire resistance of over 90 minutes (in accordance with DIN EN 1363-1) for maximum safety in the event of faulty batteries
-
Integrated fire-extinguishing and fire-retardant materials: Fittings containing vermiculite, Cirrux fibreglass hazardous-materials cushions or fireproof linings cut off the oxygen supply and nip fires in the bud
-
Safe gas management: Pressure relief valves and integrated filters prevent dangerous pressure build-up and the release of hazardous substances
-
Flexible & Robust: A wide range of products, from compact boxes and drums right through to complete systems with integrated fire detection and suppression systems
Further products for the safe storage of lithium-ion batteries
Our range of lithium-ion battery cabinets, available in various models, offers reliable fire protection for your business
